Playback

Remote control unit

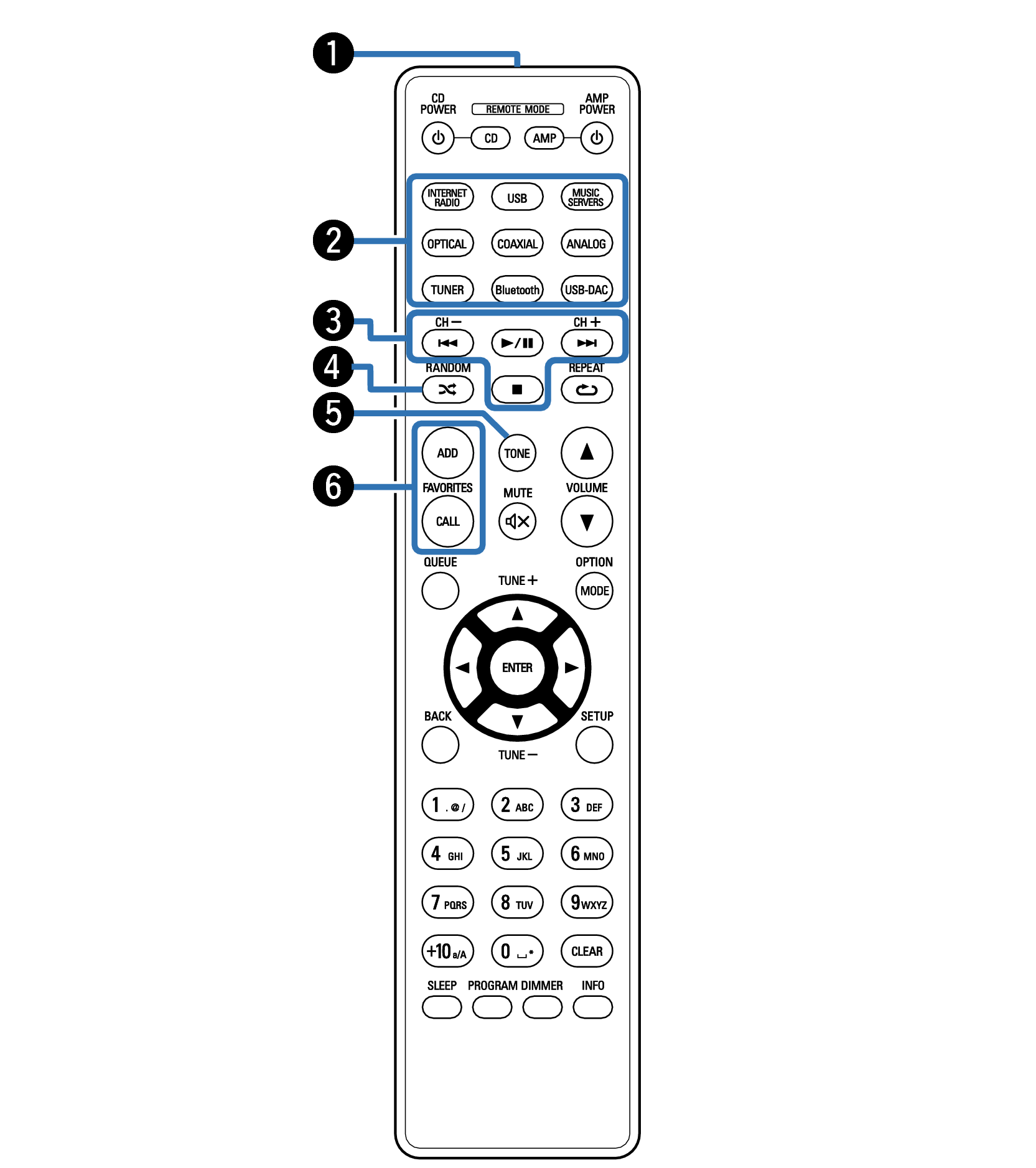

Name RC1233 1

Remote control signal transmitter

This transmits signals from the remote control unit. link

Input source select buttons

These select the input source. link

System buttons

These perform playback related operations.

Channel buttons (CH +, –)

These select stations registered to the preset list. link

RANDOM button ( Icon RANDOM )

Switches the random playback.

TONE button

Adjusting the tone. link

FAVORITES ADD / CALL buttons

This allows you to register content to “HEOS Favorites” and call registered content.

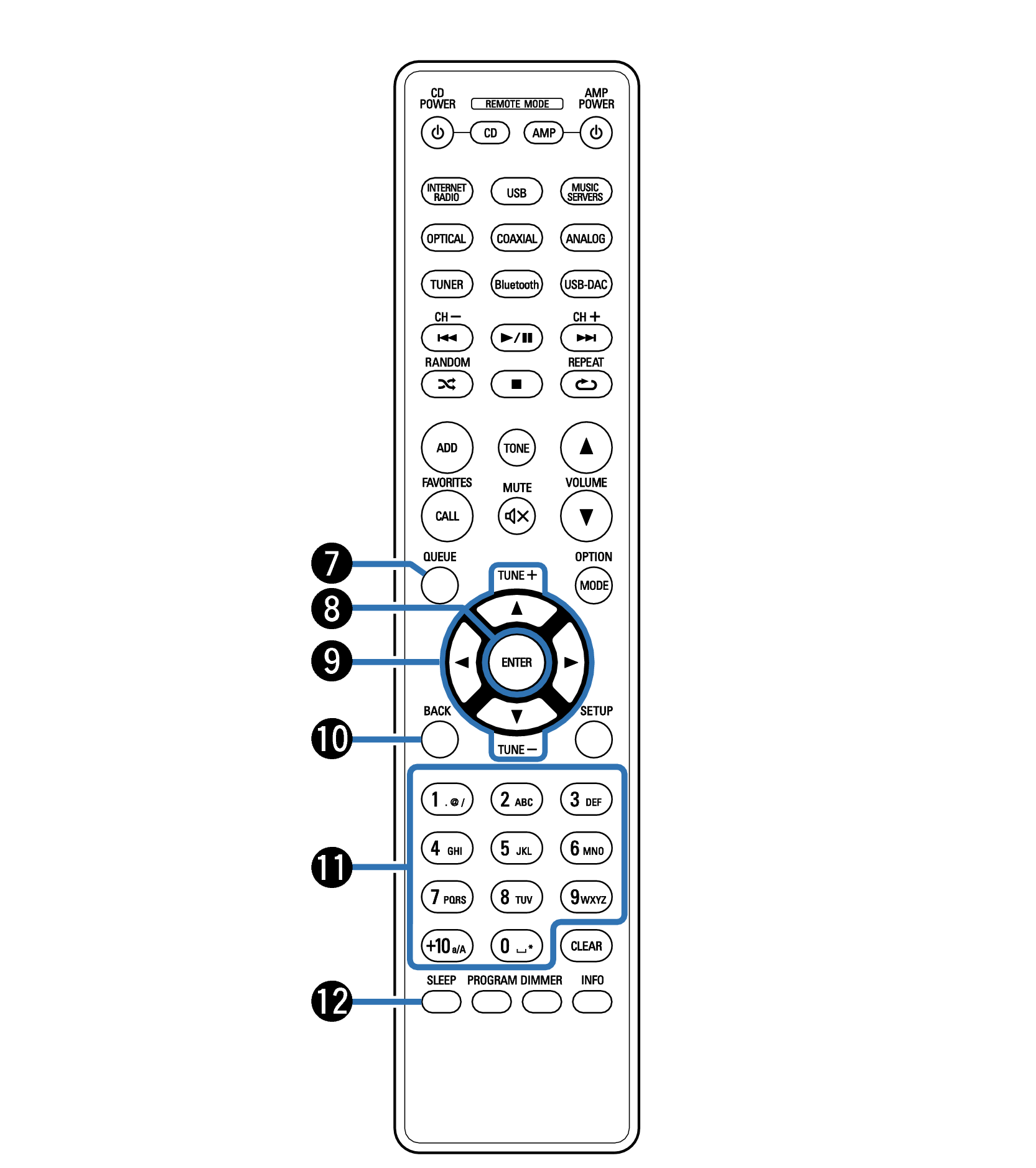

Name RC1233 2

QUEUE button

This displays the queue.

ENTER button

This determines the selection.

Cursor buttons ( shirosankaku shirosankaku-Reverse White-Arrow-Left   White-Arrow-Right )

These select items.

Tuning buttons (TUNE +, –)

These operate the tuner. link

BACK button

Returns to the previous item.

Number/letter buttons (0 – 9, +10)

These enter letters or numbers into the unit. link

SLEEP button

This sets the sleep timer. link

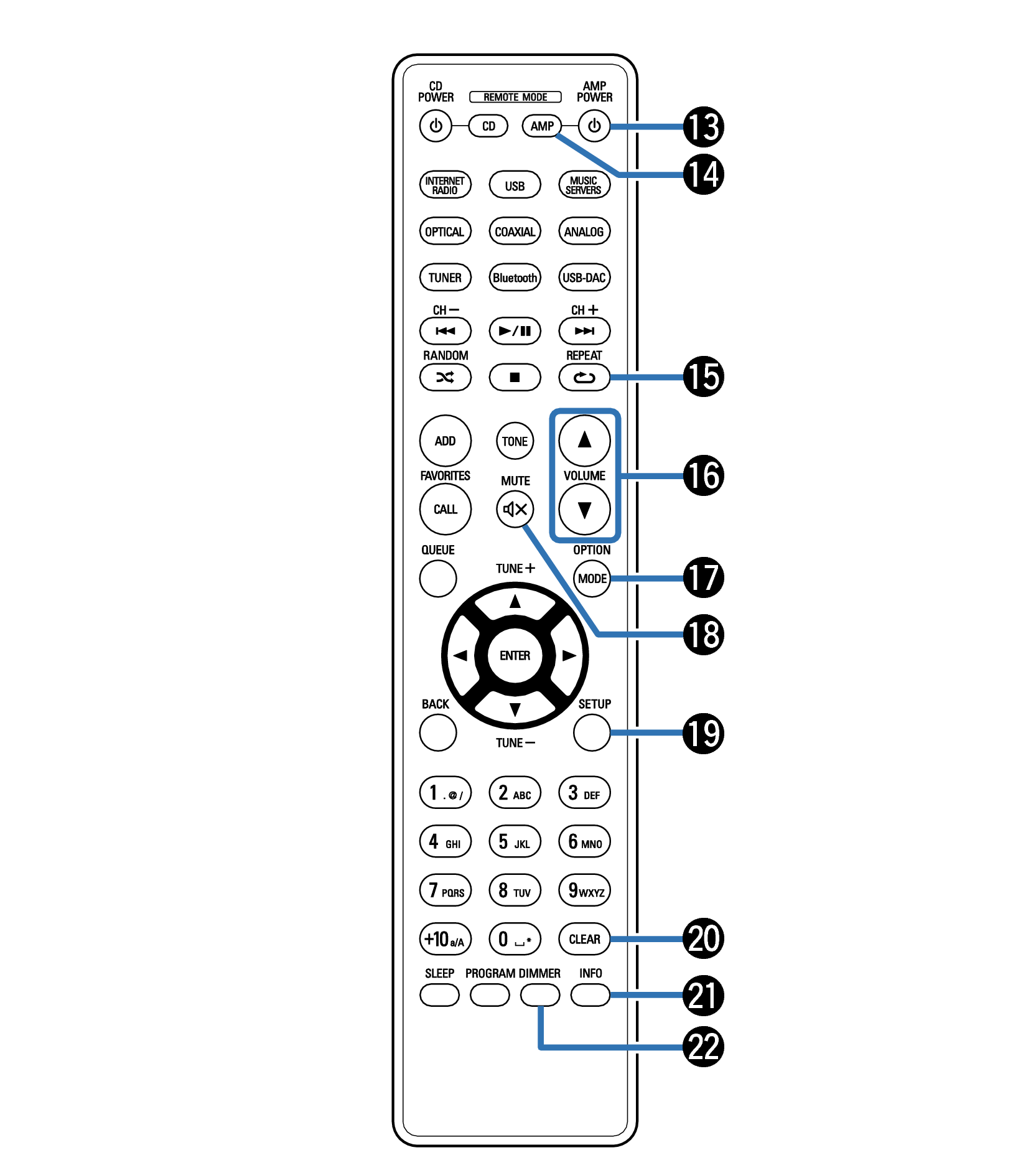

Name RC1233 3

Power operation button (AMP POWER Power Button )

This turns the power on/off (standby). link

Remote mode select button
(REMOTE MODE AMP)

Switches the remote control operating mode to this unit.

REPEAT button ( Repeat )

Switches the repeat playback.

VOLUME buttons ( kurosankaku Sankaku-Reverse )

Adjusts the volume. link

OPTION button

This displays the option menu on the display.

An option menu is not displayed for some input sources.

MUTE button ( Silent )

This mutes the output audio. link

SETUP button

The setting menu is displayed on the display. link

CLEAR button

This cancels the settings.

Information button (INFO)

This switches the track information shown in the display during playback.

DIMMER button

Adjust the display brightness of this unit. link

CD player operations

A Denon CD player can be operated.

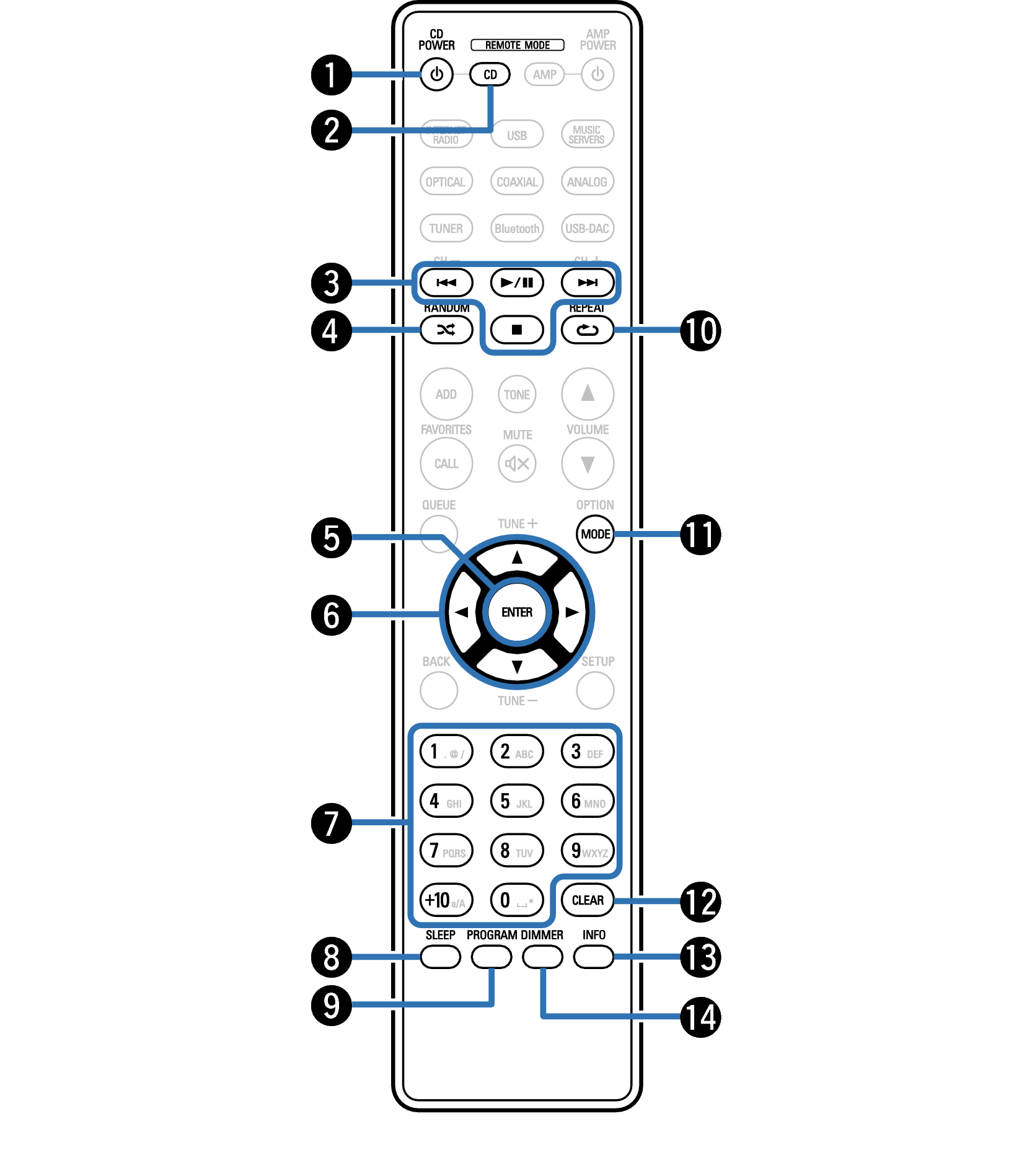

Name RC1233 4

Power button (CD POWER Power Button )

Remote mode select button
(REMOTE MODE CD)

System buttons

Skip buttons ( Skip-Left , Skip-Right )

Play/pause button ( Triangle Right / Pause )

Stop button ( Square Black )

RANDOM button ( Icon RANDOM )

ENTER button

Cursor buttons ( shirosankaku shirosankaku-Reverse White-Arrow-Left   White-Arrow-Right )

Number buttons (0 – 9, +10)

SLEEP button

PROGRAM button

REPEAT button ( Repeat )

MODE button

CLEAR button

Information button (INFO)

DIMMER button

The remote control may not operate some products.
