Bi-amp connection

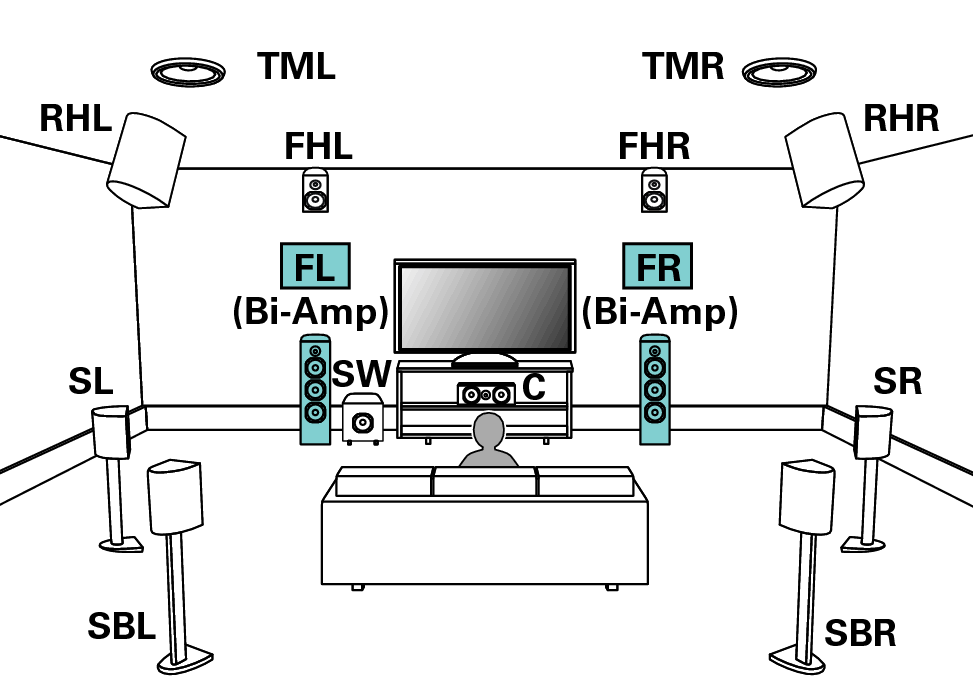

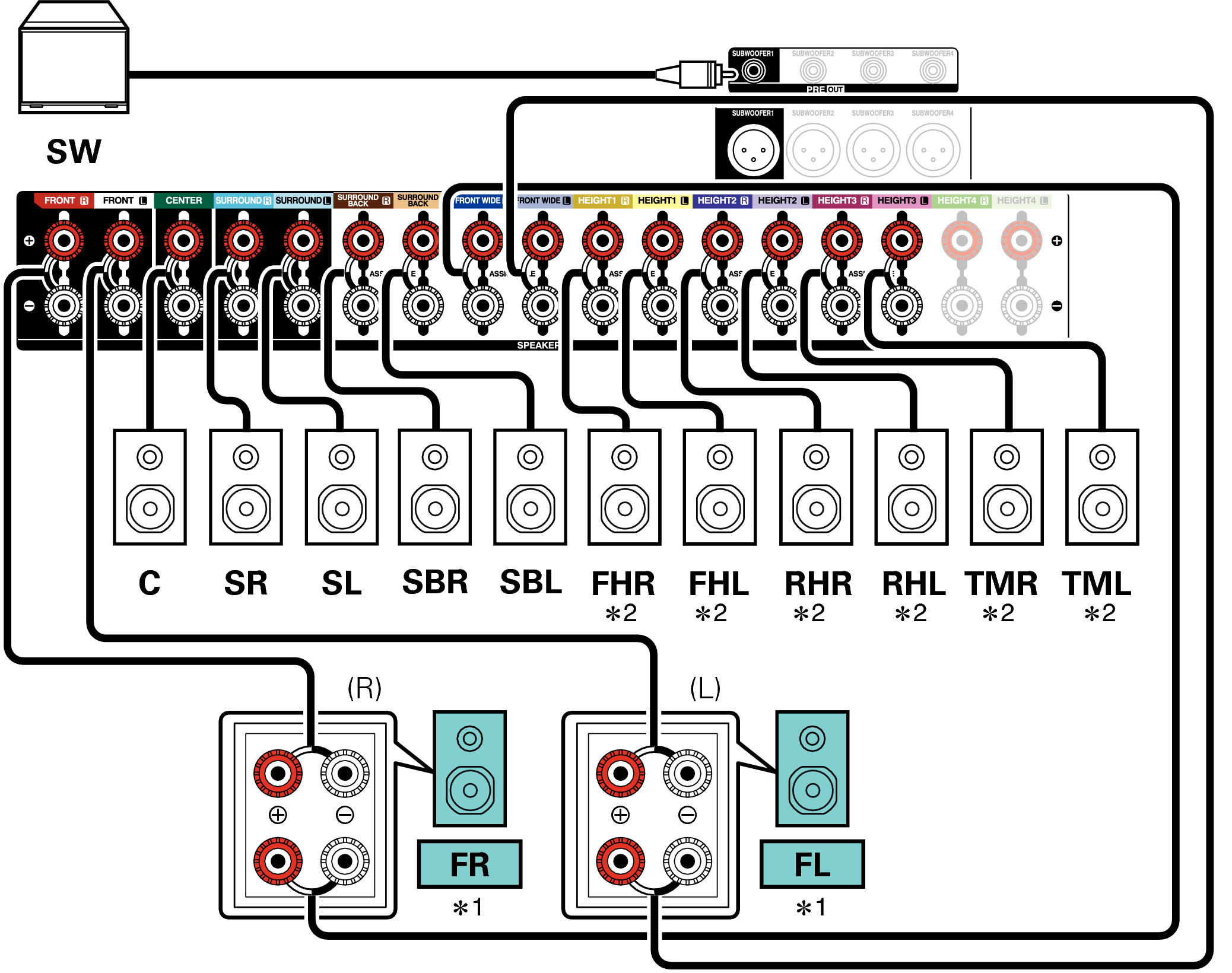

13.1-channel playback (bi-amp connection of front speakers)
This system plays back 13.1-channels. You can use the bi-amp connection for front speakers. Bi-amp connection is a method to connect separate amplifiers to the tweeter terminal and woofer terminal of a speaker that supports bi-amplification. This connection enables back EMF (power returned without being output) from the woofer to flow into the tweeter without affecting the sound quality, producing a higher sound quality.
NOTE
When making bi-amp connections, be sure to remove the short-circuiting plate or wire between the speaker’s woofer and tweeter terminals.
The speaker terminals for bi-amp connections to the front speakers vary depending on the MAIN ZONE layout. Refer to “Speaker Layout” - “Bi-Amp”. link
The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can be connected to the HEIGHT1, HEIGHT2 and HEIGHT3 speaker terminals. Set the speaker to be connected from Layout settings in the menu. link

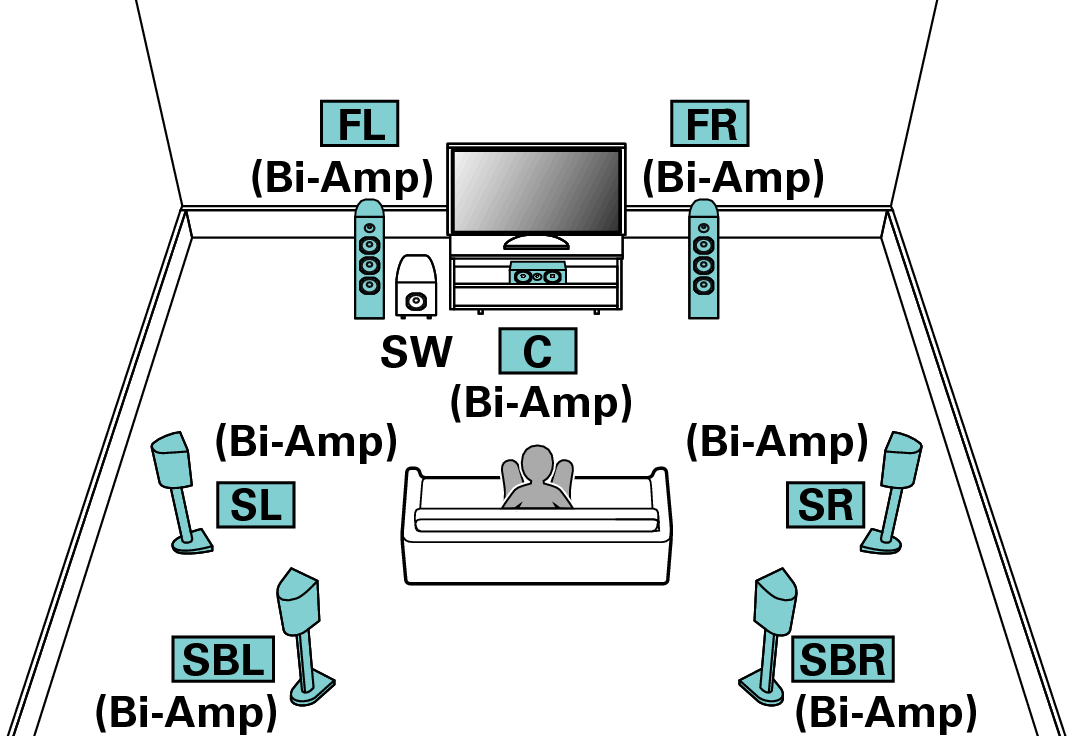

7.1-channel playback : Bi-amp connection of all speakers
This system plays back 7.1-channels.
Bi-amp connections are available for all the speakers.
In addition to the 7.1ch system with surround back speakers, you can make it into a 7.1ch system that uses use front wide or height speakers. To configure this, set “Speaker Layout” - “Amp Assign” to “7.1ch Full Bi-Amp”. link
For the “7.1ch Full Bi-Amp” setting, the connection terminals vary according to the speaker layout you are using. Connect them by referencing the following table.

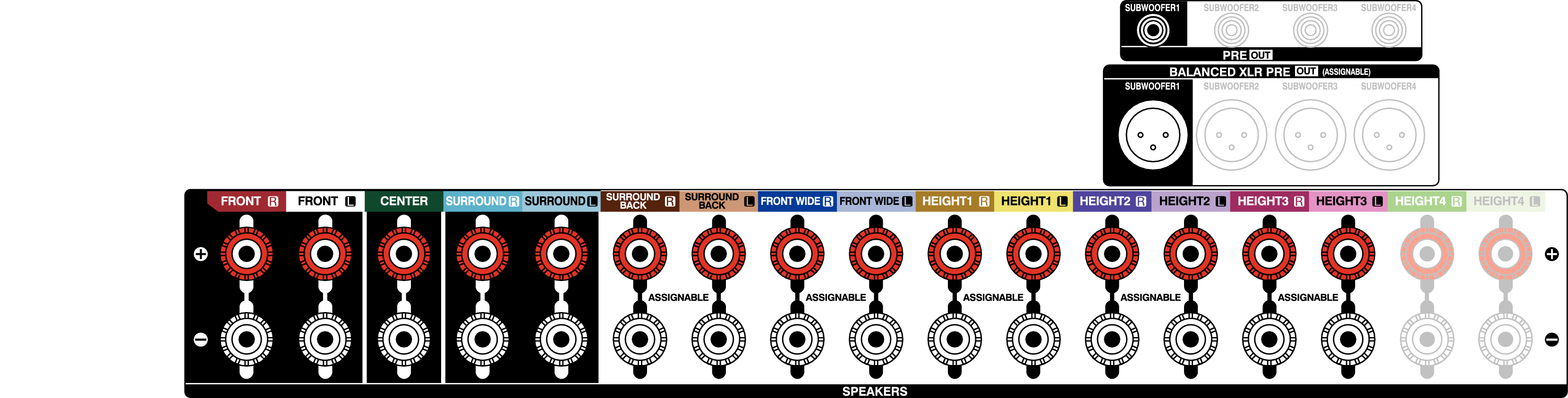

Output audio signal from each Speaker Terminal
Refer to the following table, use the Speaker terminals that output the same signal and make a bi-amp connection.
|
Speaker layout |
Speaker terminal |
||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FRONT R |
FRONT L |
CENTER |
SURROUND R |
SURROUND L |
SURROUND BACK R |
SURROUND BACK L |
FRONT WIDE R |
FRONT WIDE L |
HEIGHT 1 R |
HEIGHT 1 L |
HEIGHT 2 R |
HEIGHT 2 L |
HEIGHT 3 R |
HEIGHT 3 L |
HEIGHT 4 R |
HEIGHT 4 L |
|
|
5.1ch + Surround Back |
Front R |
Front L |
Center |
Surround |
Surround L |
Surround Back R |
Surround Back L |
Front R |
Front L |
Not Used |
Center |
Surround R |
Surround L |
Surround Back R |
Surround Back L |
Not Used |
Not Used |
|
5.1ch + Front Wide |
Front R |
Front L |
Center |
Surround |
Surround L |
Front Wide R |
Front Wide L |
Front Wide R |
Front Wide L |
Not Used |
Center |
Surround R |
Surround L |
Front R |
Front L |
Not Used |
Not Used |
|
5.1ch + Height |
Front R |
Front L |
Center |
Surround |
Surround L |
Height R |
Height L |
Front R |
Front L |
Height R |
Height L |
Surround R |
Surround L |
Not Used |
Center |
Not Used |
Not Used |
