Connecting ZONE

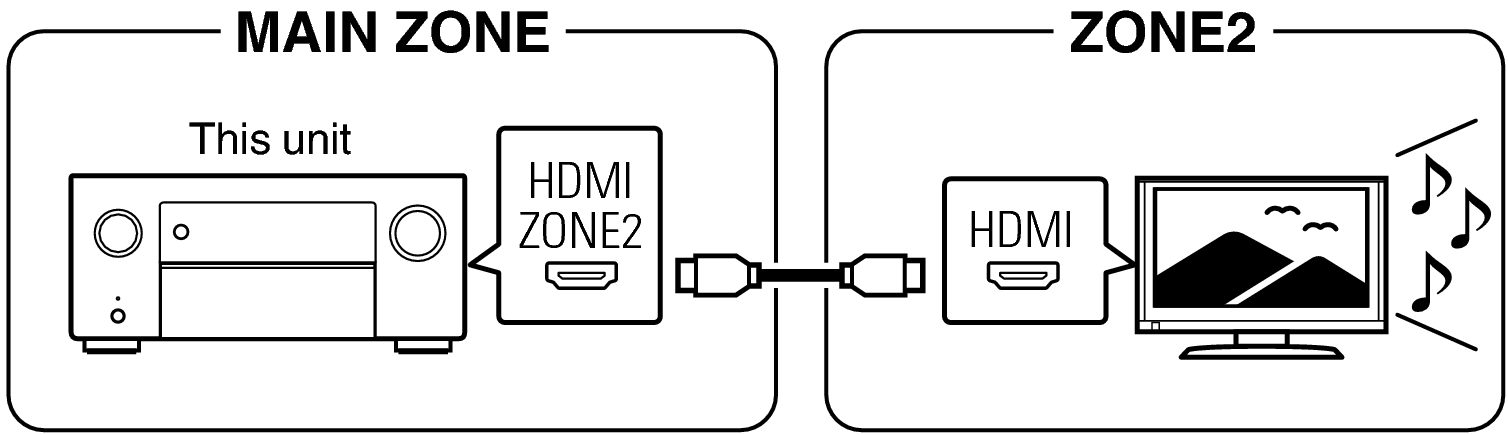

Connection 1 : Connection through the HDMI ZONE2 connector

When a TV is connected to the HDMI ZONE2 OUT connector, you can play back a video or audio from the device connected to the HDMI 1 – 7 IN connector in ZONE2 (HDMI ZONE2 function).

Pict ZONE Audio1 A1H

When a TV is connected to the HDMI ZONE2 OUT connector, and the MAIN ZONE and ZONE2 are set to the same input source, the MAIN ZONE audio may be mixed down to 2-channel audio.

Connection 2 : Connection using a speaker output terminal

When “Amp Assign” in the menu is set to any of the following audio is output from speakers in ZONE2 or ZONE3. link

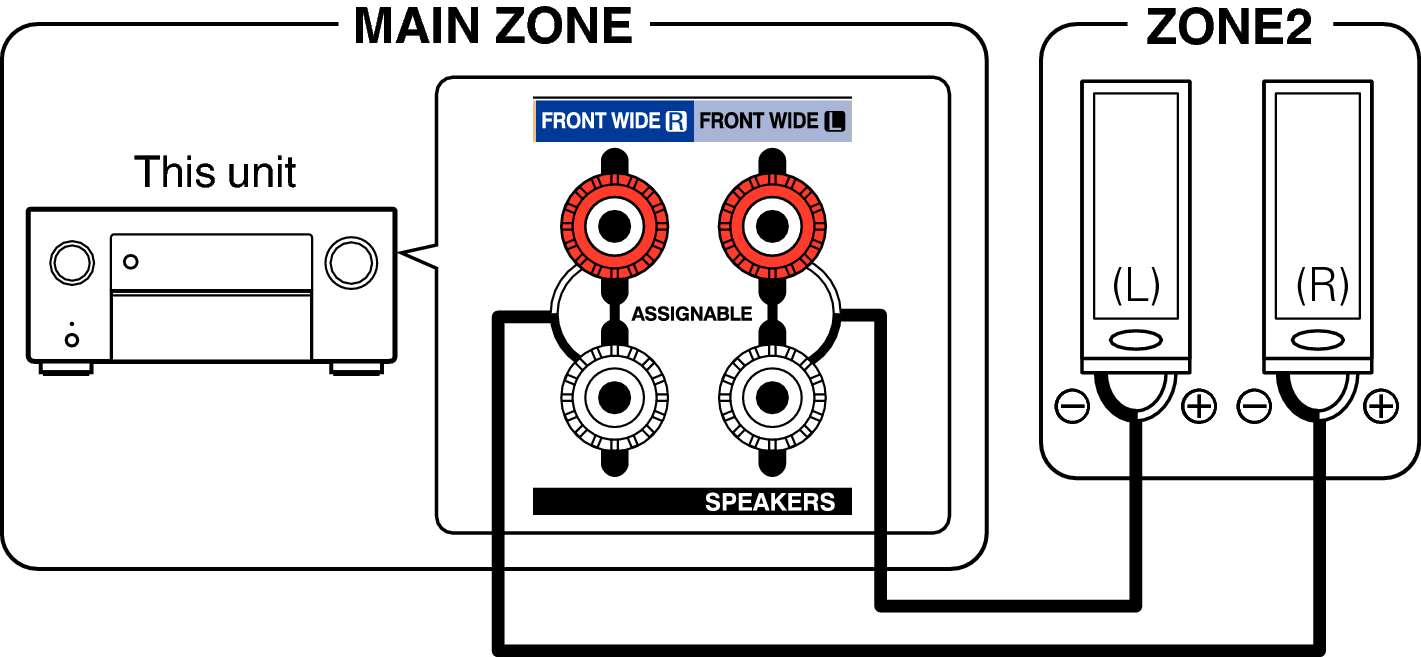

Amp Assign: 13.1ch + ZONE2

Pict ZONE Audio2 A1H

Amp Assign: 13.1ch + ZONE3

Pict ZONE Audio3 A1H

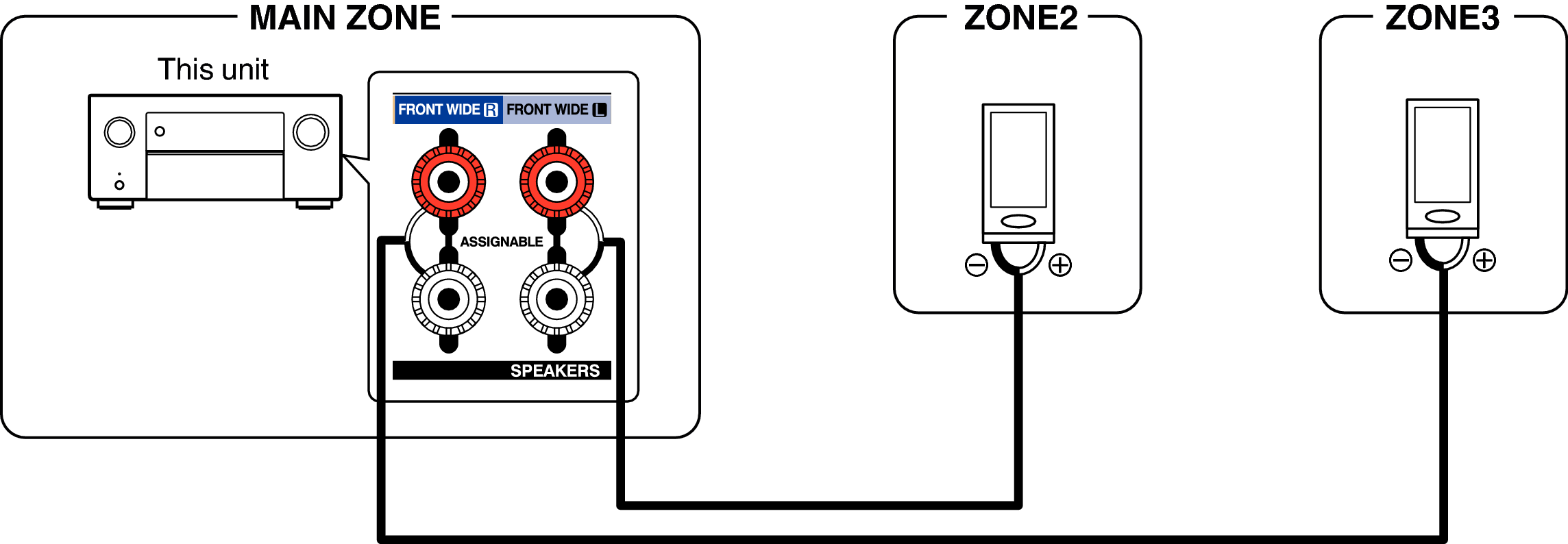

Amp Assign: 13.1ch + ZONE2/3-MONO

Pict ZONE Audio4 A1H

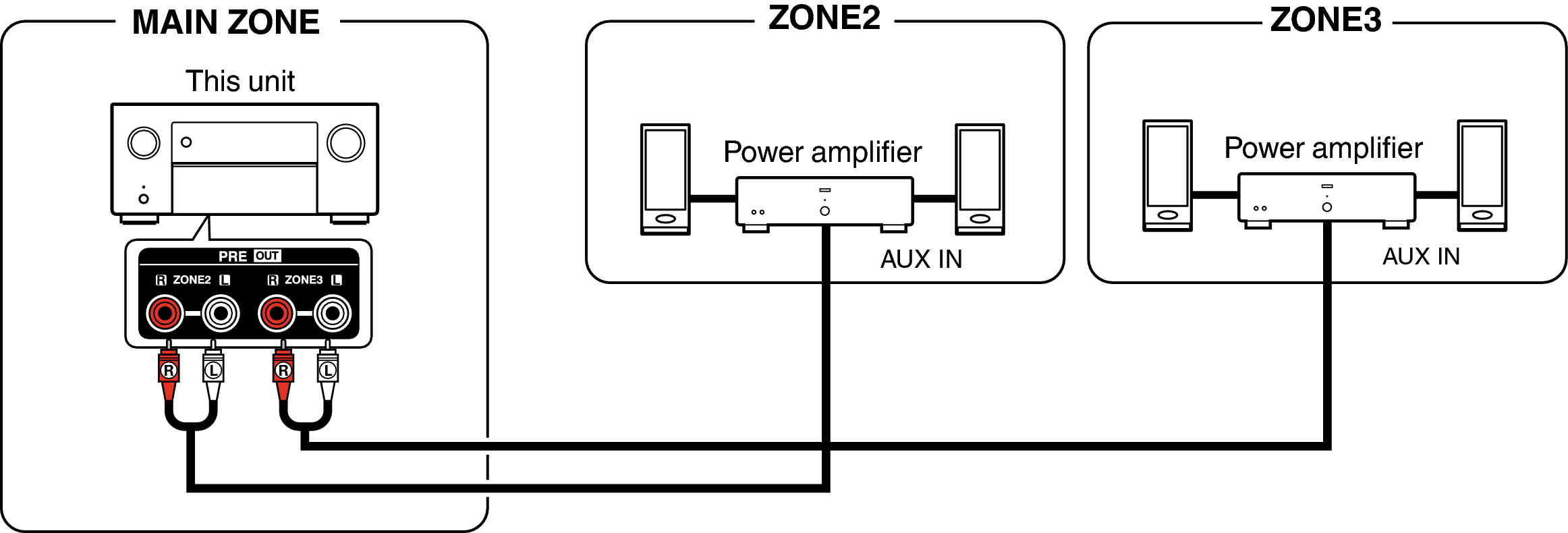

Connection 3 : Connection through the external power amplifiers

The audio signals of this unit’s ZONE2 and ZONE3 audio output connectors are played on the ZONE2 and ZONE3 power amplifiers.

Pict ZONE Audio5 A1H
