Remote control unit

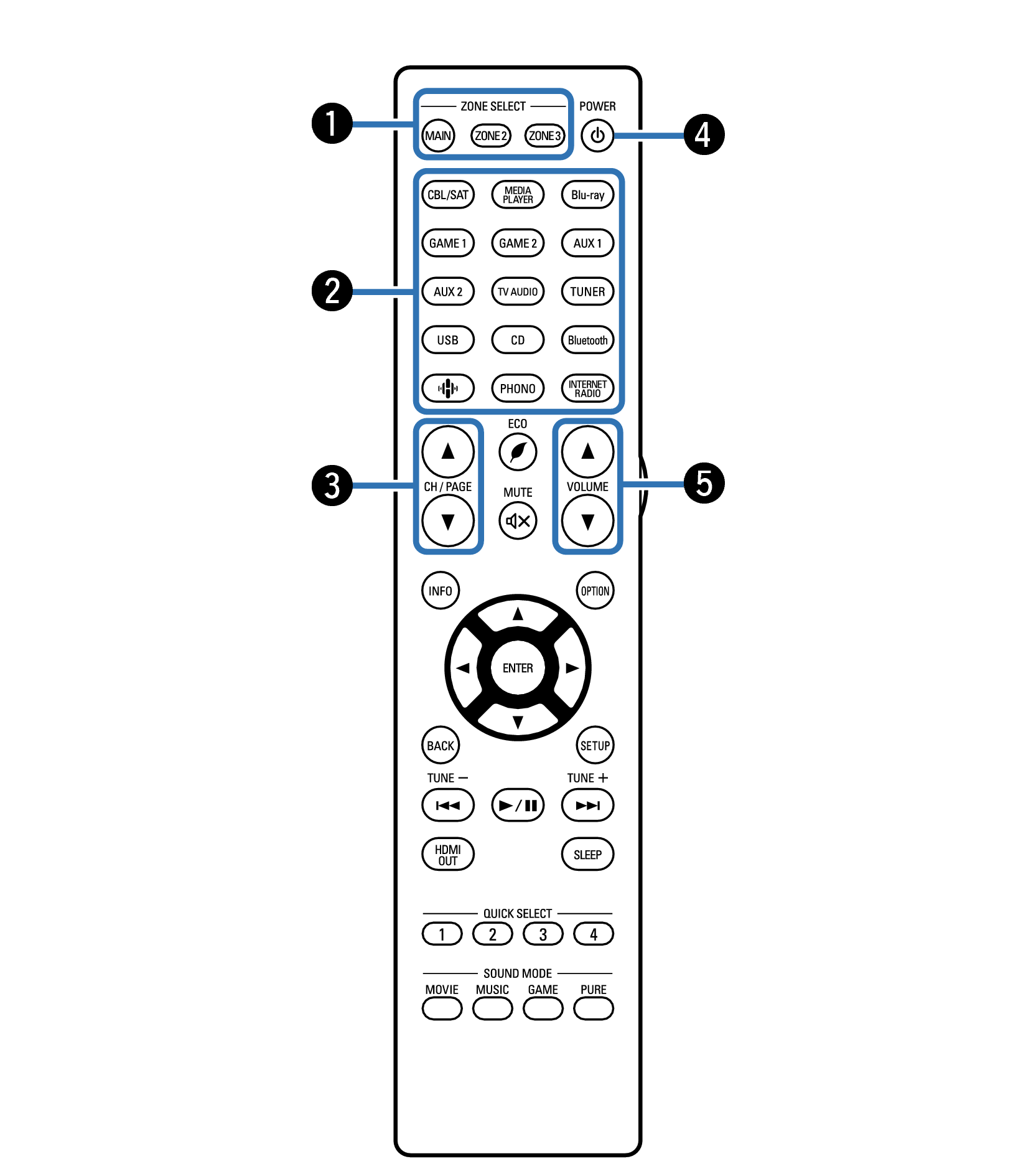

Name RC1250-1

ZONE SELECT buttons (MAIN, Z2, Z3)

These switch the zone (MAIN ZONE, ZONE2, ZONE3) that is operated through the remote control unit.

Playing different sources in MAIN ZONE, ZONE2 and ZONE3link

Menu operationslink

Specifying the zone used with the remote control unitlink

Input source select buttons

These select the input source.

Selecting the input sourcelink

Playing different sources in MAIN ZONE, ZONE2 and ZONE3link

Channel/page search buttons (CH/PAGE  kurosankaku Sankaku-Reverse )

These select radio stations registered to presets or switch pages. link

POWER button ( Power Button )

This turns the power on/off.

Turning the power onlink

Playback in ZONE2/ZONE3 (Another room)link

VOLUME buttons ( kurosankaku Sankaku-Reverse )

These adjust the volume level.

Adjusting the volumelink

Adjusting the Volume in ZONE2/ZONE3link

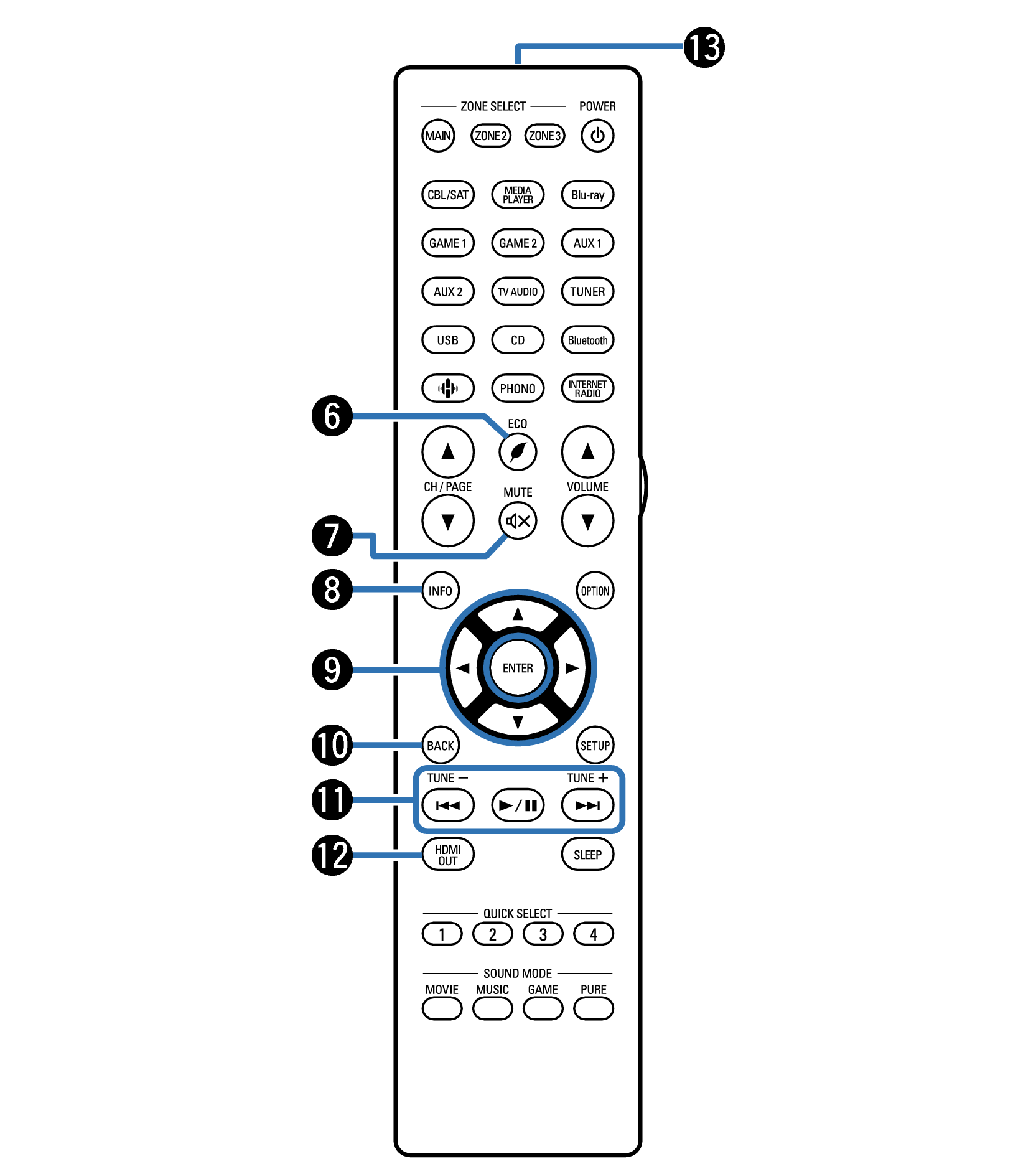

Name RC1250-2

ECO Mode button ( Icon Eco )

This switches to ECO Mode. link

MUTE button ( Silent )

This mutes the output audio.

Turning off the sound temporarily (Muting)link

Turning off the sound temporarily (Muting)link

Information button (INFO)

This displays the status information on the TV screen. link

Cursor buttons

These select items.

BACK button

This returns to the previous screen.

System buttons

These perform playback related operations.

Tuning up / Tuning down buttons (TUNE +, –)

These select either FM broadcast or AM broadcast. link

HDMI OUT button

This sets the HDMI monitor output. link

Remote control signal transmitter

This transmits signals from the remote control unit. link

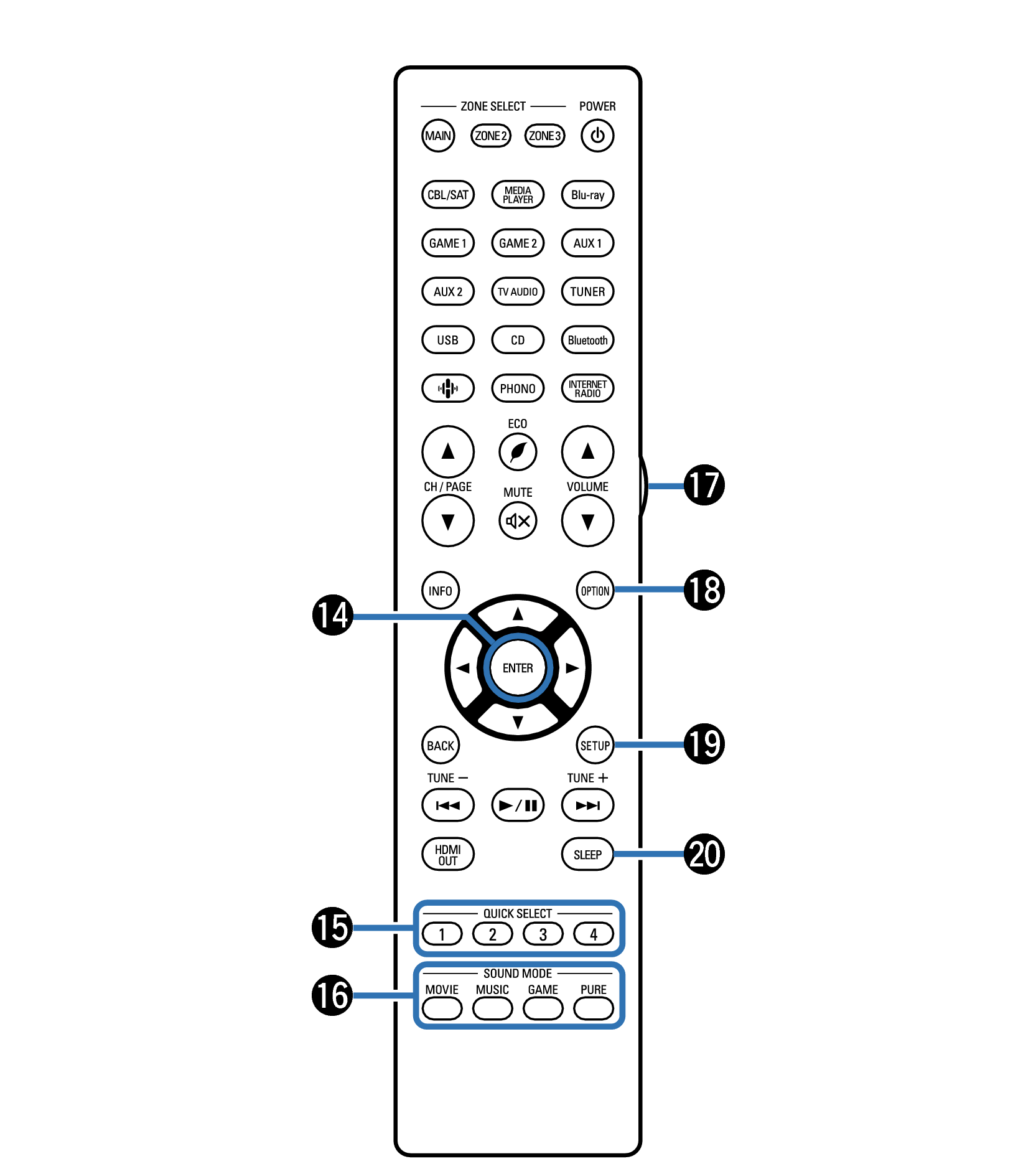

Name RC1250-3

ENTER button

This determines the selection.

QUICK SELECT buttons (1 – 4)

These call up settings registered to each button, such as input source, volume level and sound mode settings. link

SOUND MODE buttons

These select the sound mode. link

Light button

This turns on the backlight for approx. 5 seconds. link

OPTION button

This displays the option menu on the TV screen.

SETUP button

This displays the menu on the TV screen. link

SLEEP button

This sets the sleep timer. link
