Connecting 15.1-channel speakers

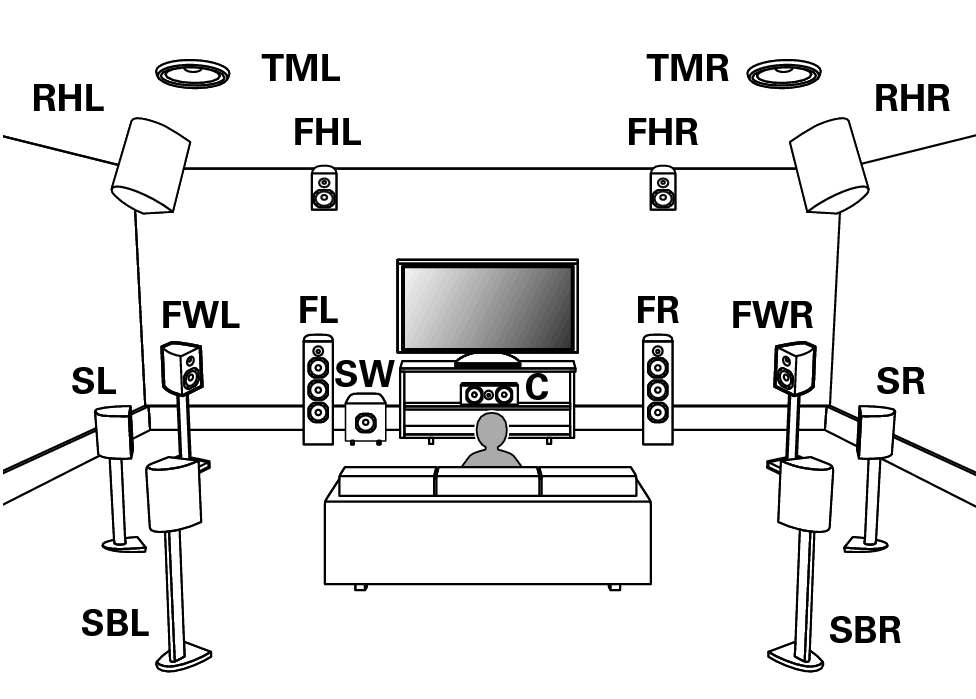

Example layout when using surround back, Front Wide and three set of height speakers
For each speaker connection, refer to the following.
Set Speaker Layout in the menu as follows. link
Center: Yes
Surround: Yes
Surround Back: 2 spkrs
Front Wide: Yes
Height Speakers: 6 spkrs
Front Layout: Front Height
Middle Layout: Top Middle
Rear Layout: Rear Height
TS/CH: No
Subwoofers: 1 spkr

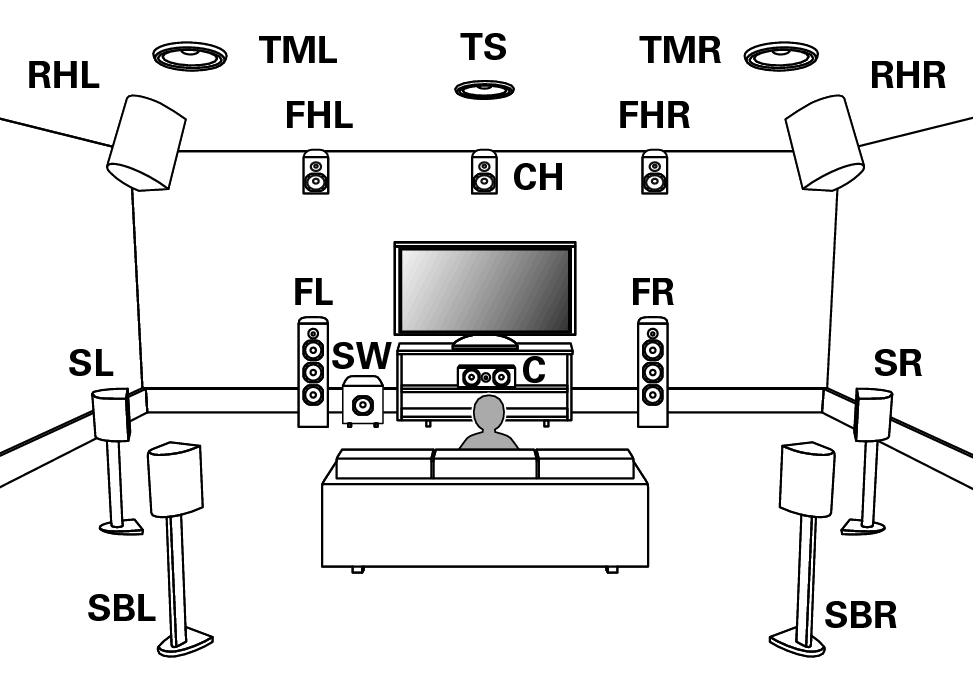

Example layout when using surround back and eight height speakers
This system can connect with up to 15.1-channel speakers and simultaneously play up to 13.1-channels for Dolby Atmos and Auro-3D playback.
The top middle speakers, top surround speaker, and center height speaker are switched and played according to the audio format you are playing.
For each speaker connection, refer to the following.
Set Speaker Layout in the menu as follows. link
Center: Yes
Surround: Yes
Surround Back: 2 spkrs
Front Wide: No
Height Speakers: 8 spkrs
Front Layout: Front Height
Middle Layout: Top Middle
Rear Layout: Rear Height
TS/CH: TS/CH
Subwoofers: 1 spkr
