Connecting 13.1-channel speakers

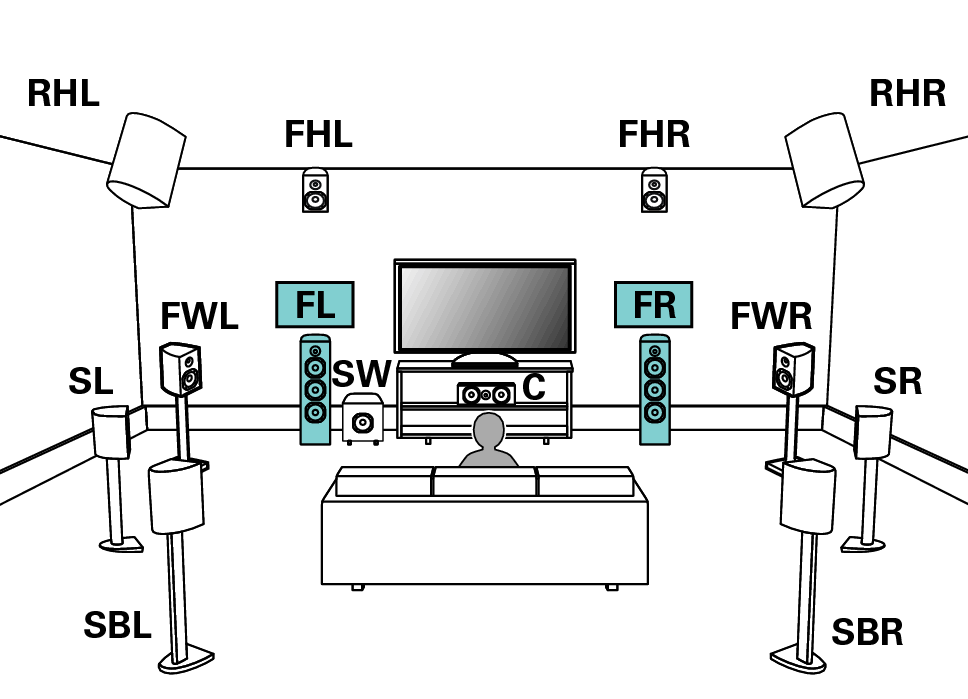

Example layout when using surround back, Front Wide and two set of height speakers

Pict SP Layout 13.1 FH RH FW1

For each speaker connection, refer to the following.

Connecting speakers to the speaker terminalslink

Connecting an external power amplifierlink

Set Speaker Layout in the menu as follows. link

Center: Yes

Surround: Yes

Surround Back: 2 spkrs

Front Wide: Yes

Height Speakers: 4 spkrs

Front Layout: Front Height

Rear Layout: Rear Height

Subwoofers: 1 spkr

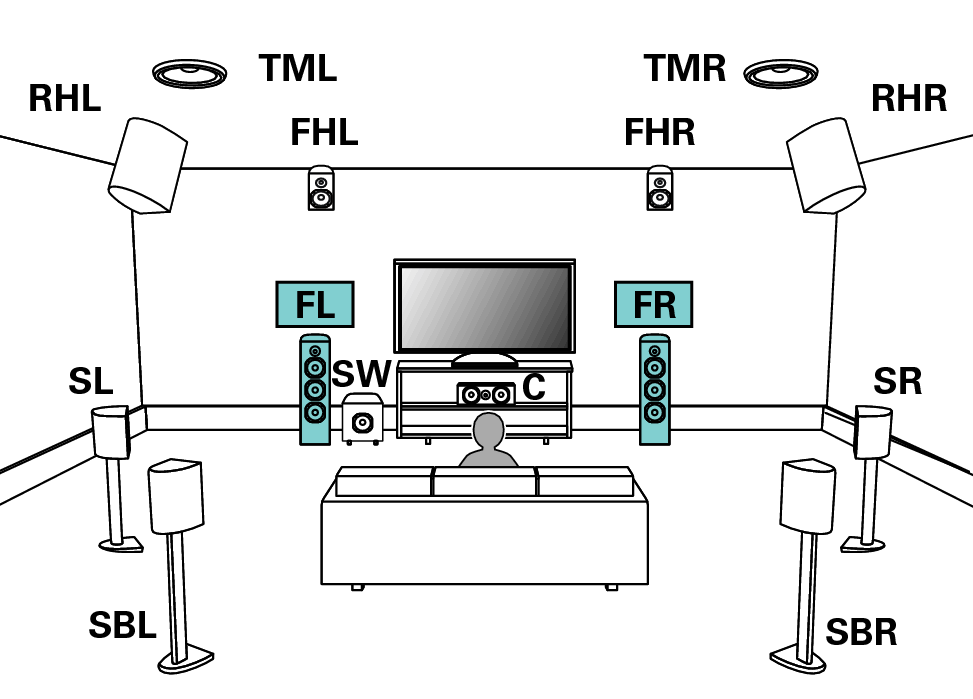

Example layout when using surround back and three sets of height speakers

Pict SP Layout 13.1 FH RH TM1

For each speaker connection, refer to the following.

Connecting speakers to the speaker terminalslink

Connecting an external power amplifierlink

Set Speaker Layout in the menu as follows. link

Center: Yes

Surround: Yes

Surround Back: 2 spkrs

Height Speakers: 6 spkrs

Front Layout: Front Height

Middle Layout: Top Middle

Rear Layout: Rear Height

Subwoofers: 1 spkr

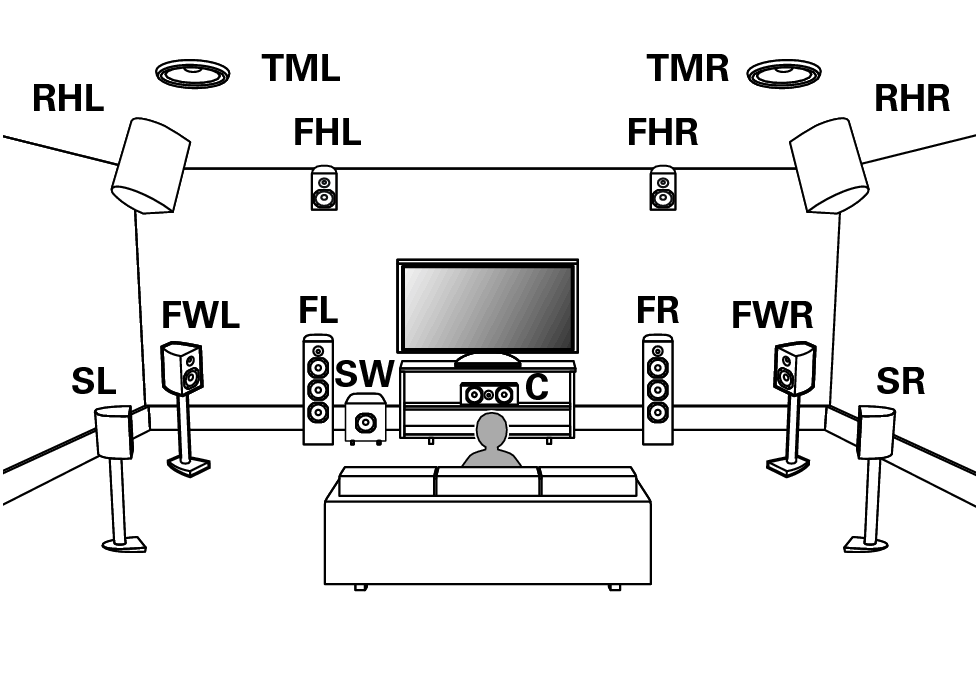

Example layout when using front wide and three sets of height speakers

Pict SP Layout 13.1 FW RH TM1

For each speaker connection, refer to the following.

Connecting speakers to the speaker terminalslink

Connecting an external power amplifierlink

Set Speaker Layout in the menu as follows. link

Center: Yes

Surround: Yes

Front Wide: Yes

Height Speakers: 6 spkrs

Front Layout: Front Height

Middle Layout: Top Middle

Rear Layout: Rear Height

Subwoofers: 1 spkr

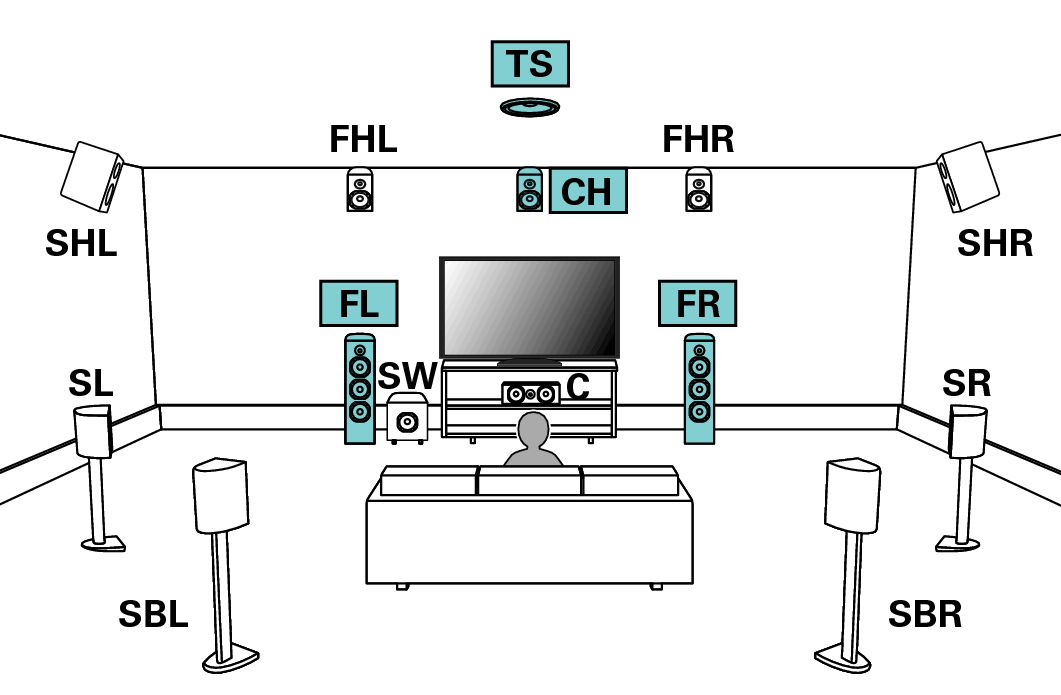

Example layout for Auro-3D 13.1 channel system

This speaker configuration is optimized for Auro-3D playback.

Pict SP Layout 13.1 Auro1

For each speaker connection, refer to the following.

Connecting speakers to the speaker terminalslink

Connecting an external power amplifierlink

Set Speaker Layout in the menu as follows. link

Center: Yes

Surround: Yes

Surround Back: 2 spkrs

Height Speakers: 6 spkrs

Front Layout: Front Height

Middle Layout: Surround Height

Rear Layout: No

TS/CH: TS/CH

Subwoofers: 1 spkr

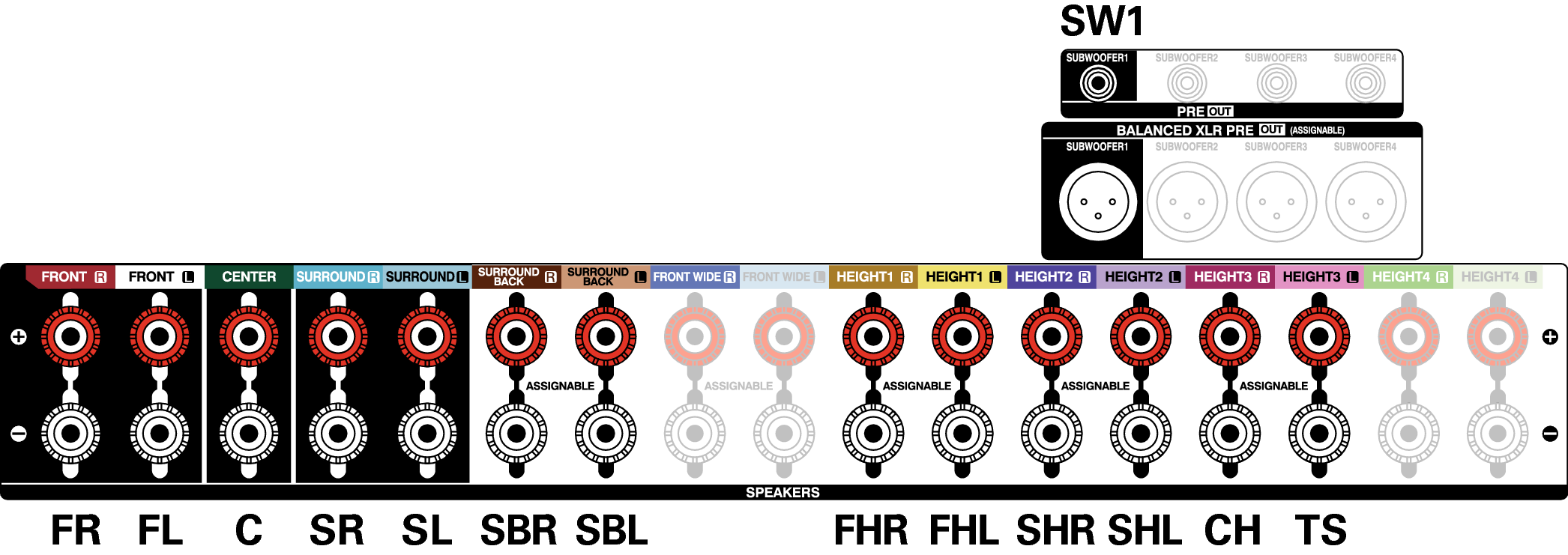

Conne SP 13.1_Auro A1H

To use two sets of height speakers with a center height and top surround speakers, connect the center height and top surround speakers to the HEIGHT 3 connector.
