Connecting 13.1-channel speakers : Second pair of front speakers

This system enables switching playback between front speakers A and B as desired.

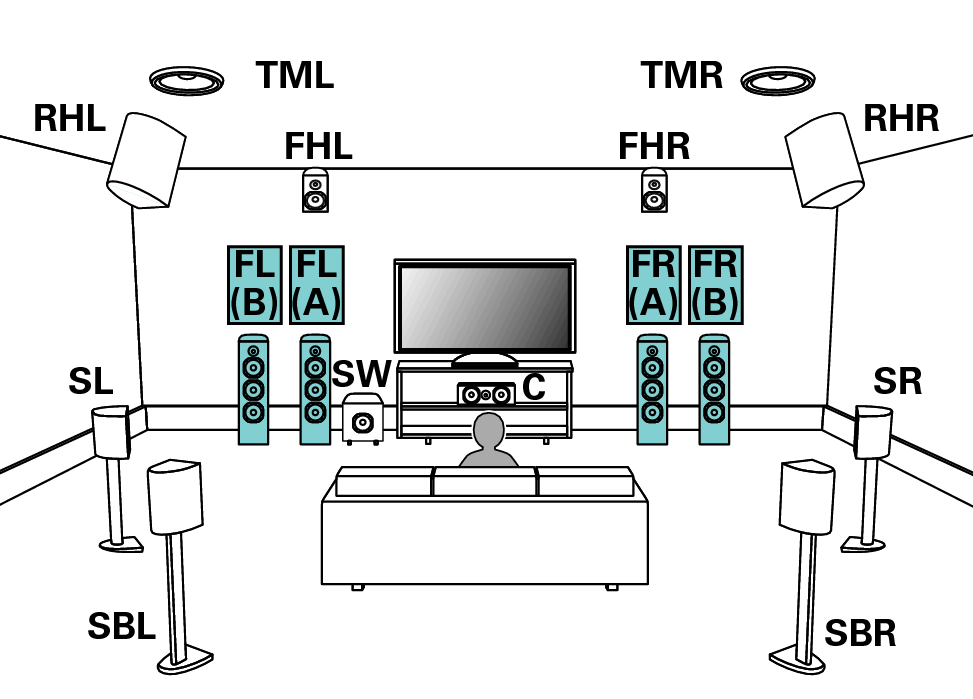

Pict SP Layout 13.1 FB

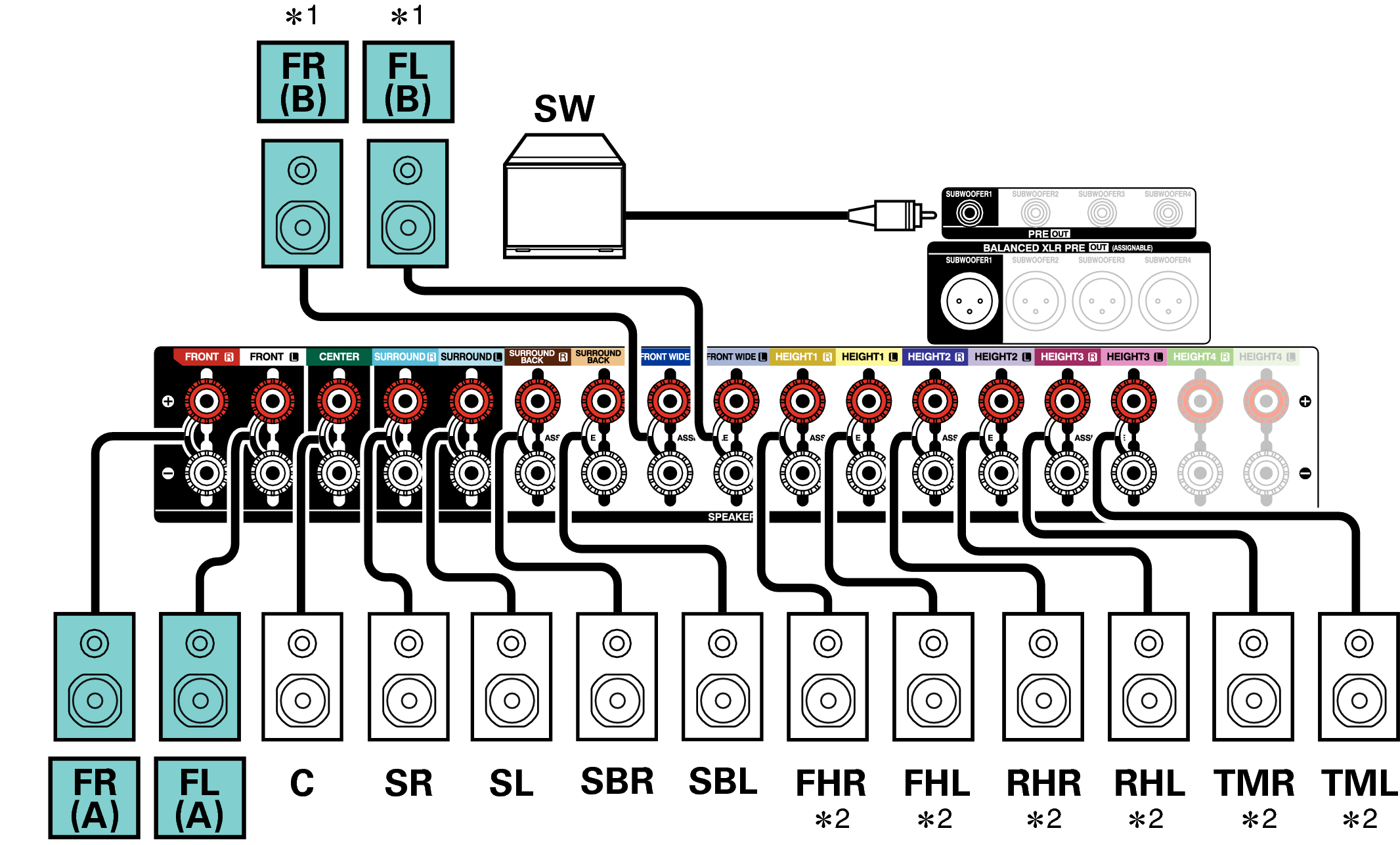

Conne SP 13.1 FB A1H

The speaker terminals for connecting to the second front speakers vary depending on the MAIN ZONE layout. Refer to “Speaker Layout” - “Front B”. link

The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can be connected to the HEIGHT1, HEIGHT2 and HEIGHT3 speaker terminals. Set the speaker to be connected from Layout settings in the menu. link
