Connecting 11.1-channel speakers

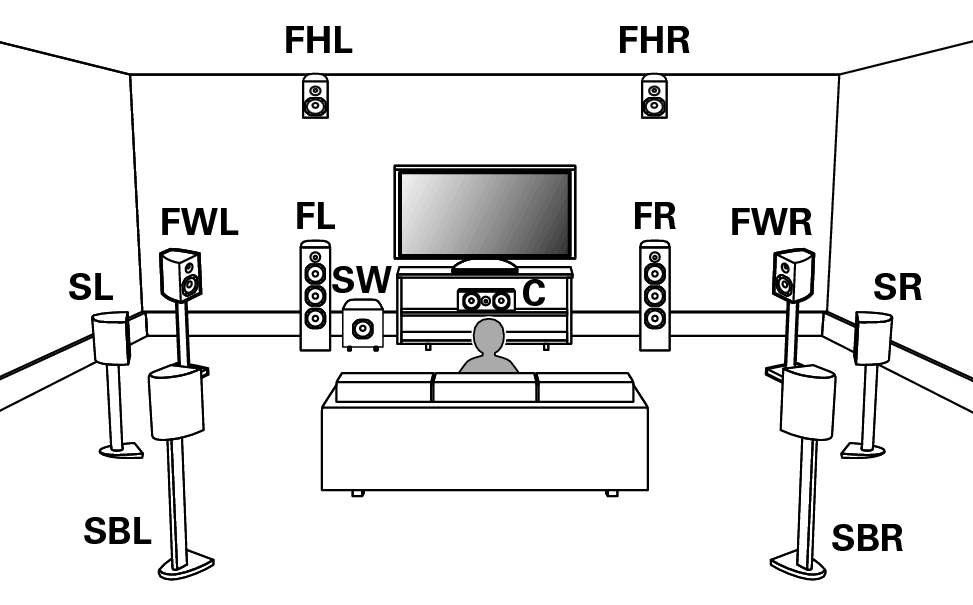

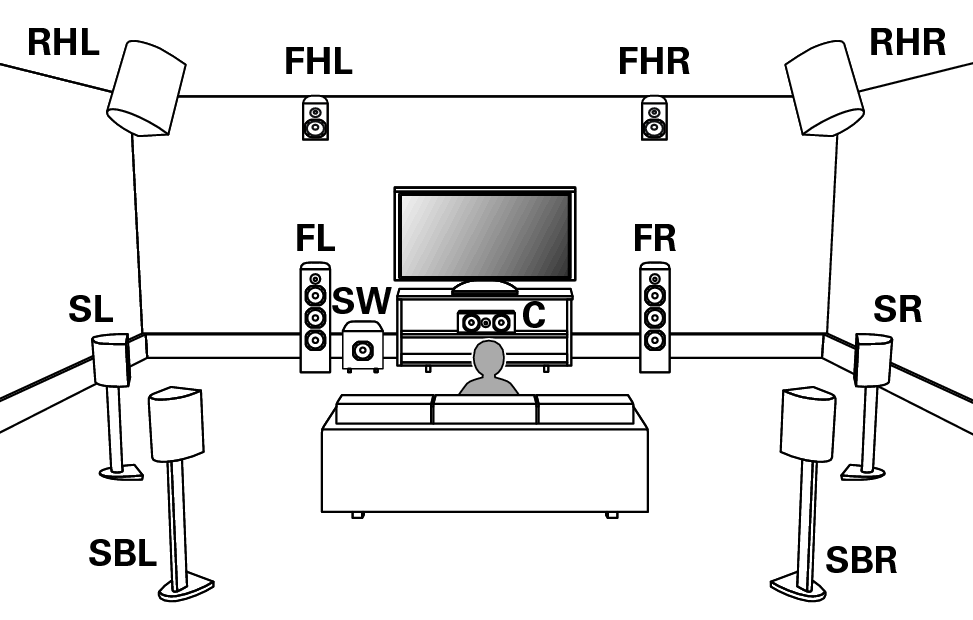

Example layout when using surround back, Front Wide and one set of height speakers
For each speaker connection, refer to the following.
Set Speaker Layout in the menu as follows. link
Center: Yes
Surround: Yes
Surround Back: 2 spkrs
Front Wide: Yes
Height Speakers: 2 spkrs
Layout: Front Height
Subwoofers: 1 spkr
The front height speakers can be changed to other height, ceiling or Dolby Atmos Enabled speakers in the “Speaker Layout” - “Layout” settings.
Example layout when using surround back and two sets of height speakers
For each speaker connection, refer to the following.
Set Speaker Layout in the menu as follows. link
Center: Yes
Surround: Yes
Surround Back: 2 spkrs
Height Speakers: 4 spkrs
Front Layout: Front Height
Rear Layout: Rear Height
Subwoofers: 1 spkr
The front height speakers and rear height speakers can be changed to other height, ceiling or Dolby Atmos Enabled speakers in the “Speaker Layout” - “Layout” settings.

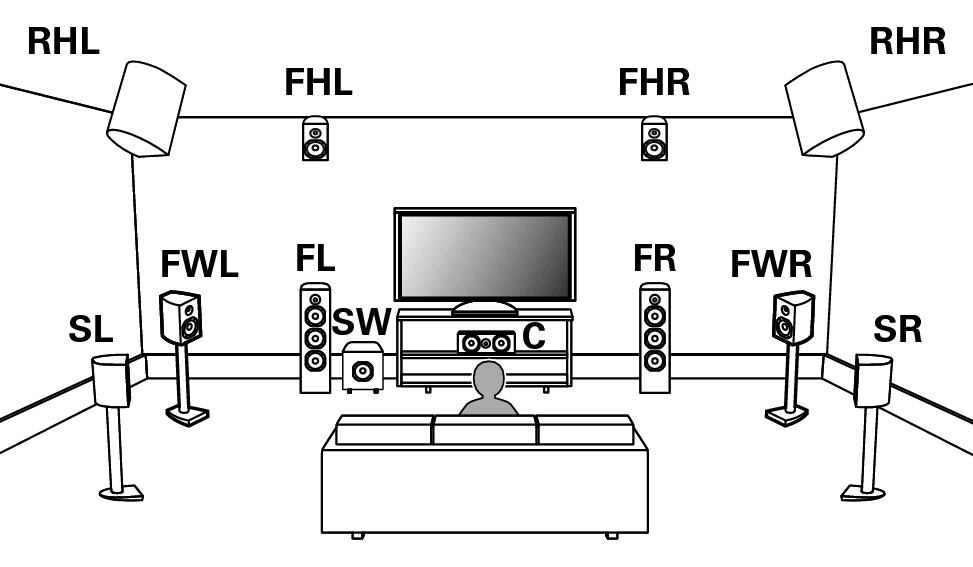

Example layout when using front wide and two sets of height speakers
For each speaker connection, refer to the following.
Set Speaker Layout in the menu as follows. link
Center: Yes
Surround: Yes
Front Wide: Yes
Height Speakers: 4 spkrs
Front Layout: Front Height
Rear Layout: Rear Height
Subwoofers: 1 spkr
The front height speakers and rear height speakers can be changed to other height, ceiling or Dolby Atmos Enabled speakers in the “Speaker Layout” - “Layout” settings.

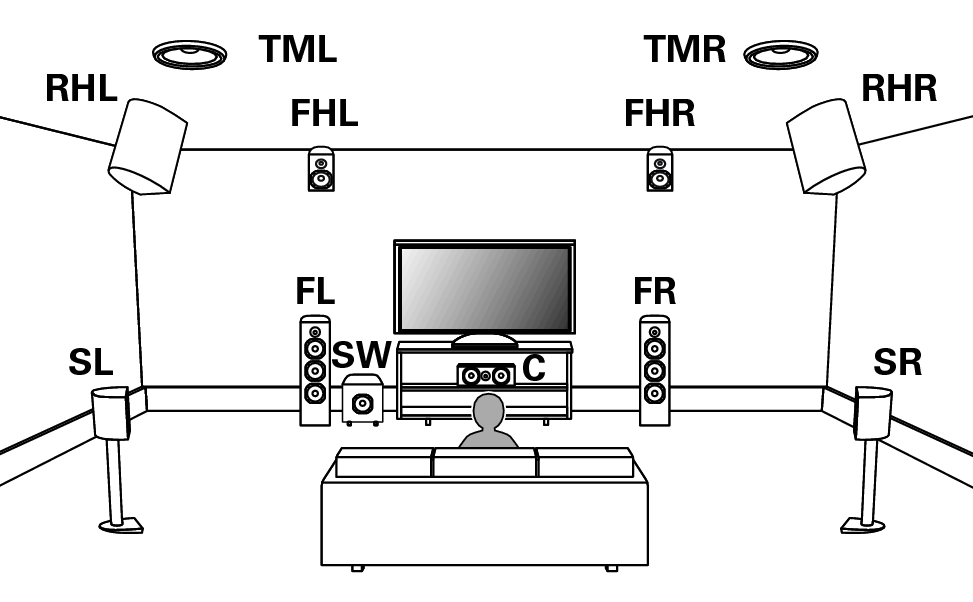

Example layout when using three sets of height speakers
For each speaker connection, refer to the following.
Set Speaker Layout in the menu as follows. link
Center: Yes
Surround: Yes
Height Speakers: 6 spkrs
Front Layout: Front Height
Middle Layout: Top Middle
Rear Layout: Rear Height
Subwoofers: 1 spkr
The front height speakers, top middle speakers and rear height speakers can be changed to other height, ceiling or Dolby Atmos Enabled speakers in the “Speaker Layout” - “Layout” settings.

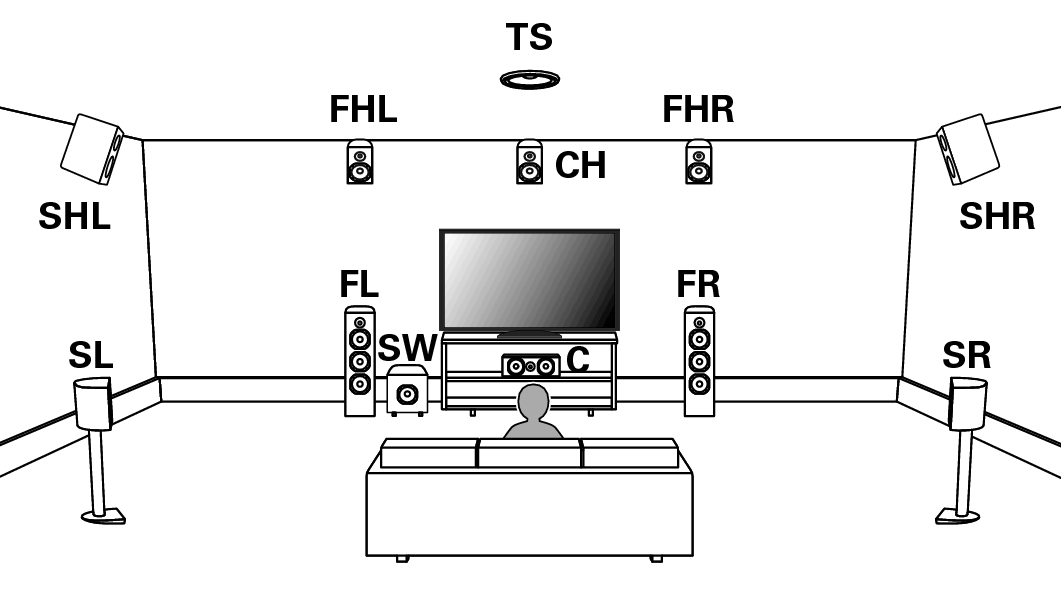

Example layout for Auro-3D 11.1 channel system
This speaker configuration is optimized for Auro-3D playback.

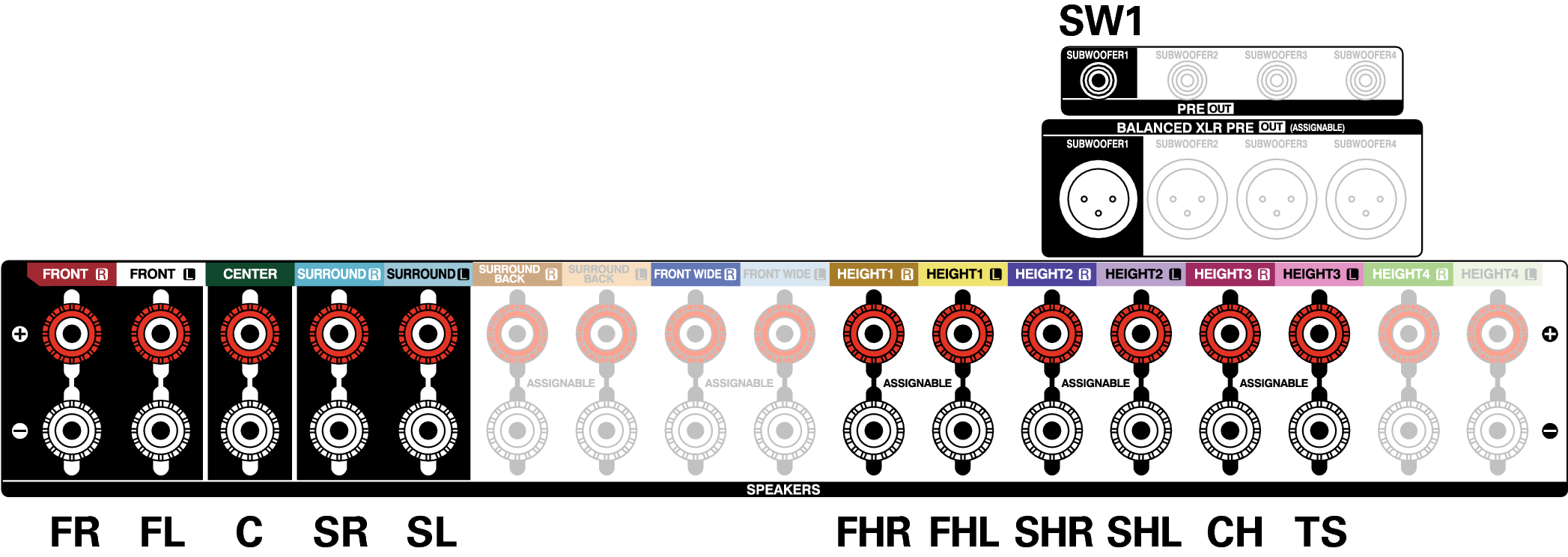

For each speaker connection, refer to the following.
Set Speaker Layout in the menu as follows. link
Center: Yes
Surround: Yes
Height Speakers: 6 spkrs
Front Layout: Front Height
Middle Layout: Surround Height
Rear Layout: No
TS/CH: TS/CH
Subwoofers: 1 spkr
To use two sets of height speakers with a center height and top surround speakers, connect the center height and top surround speakers to the HEIGHT 3 connector.
