Playback

Connecting 7.1-channel speakers

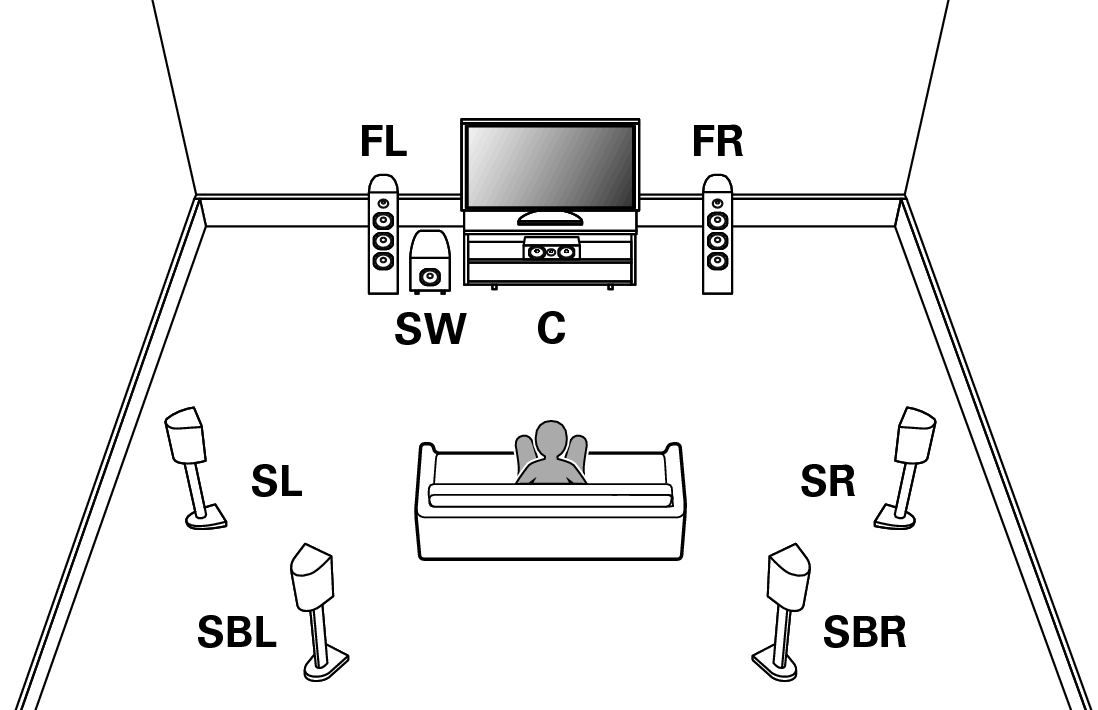

Example layout when using surround back speakers

This 7.1-channel surround system is basic 7.1-channel system.
(Adding surround back speakers to basic 5.1-channel system)

Pict SP Layout 7.1_SB1

For each speaker connection, refer to the following.

Set Speaker Layout in the menu as follows. link

Center: Yes
Surround: Yes
Surround Back: 2 spkrs
Subwoofers: 1 spkr

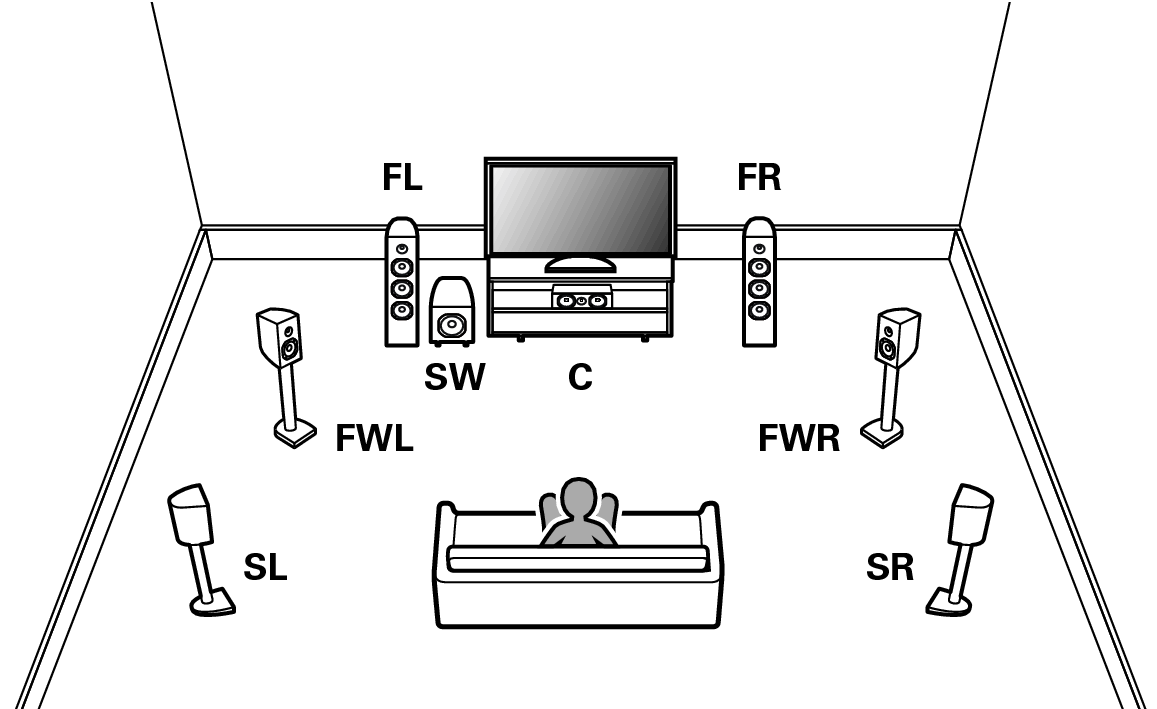

Example layout when using front wide speakers

This 7.1-channel surround system is the same as a basic 5.1-channel system but with front wide speakers.

Pict SP Layout 7.1 FW1

For each speaker connection, refer to the following.

Set Speaker Layout in the menu as follows. link

Center: Yes
Surround: Yes
Front Wide: Yes
Subwoofers: 1 spkr

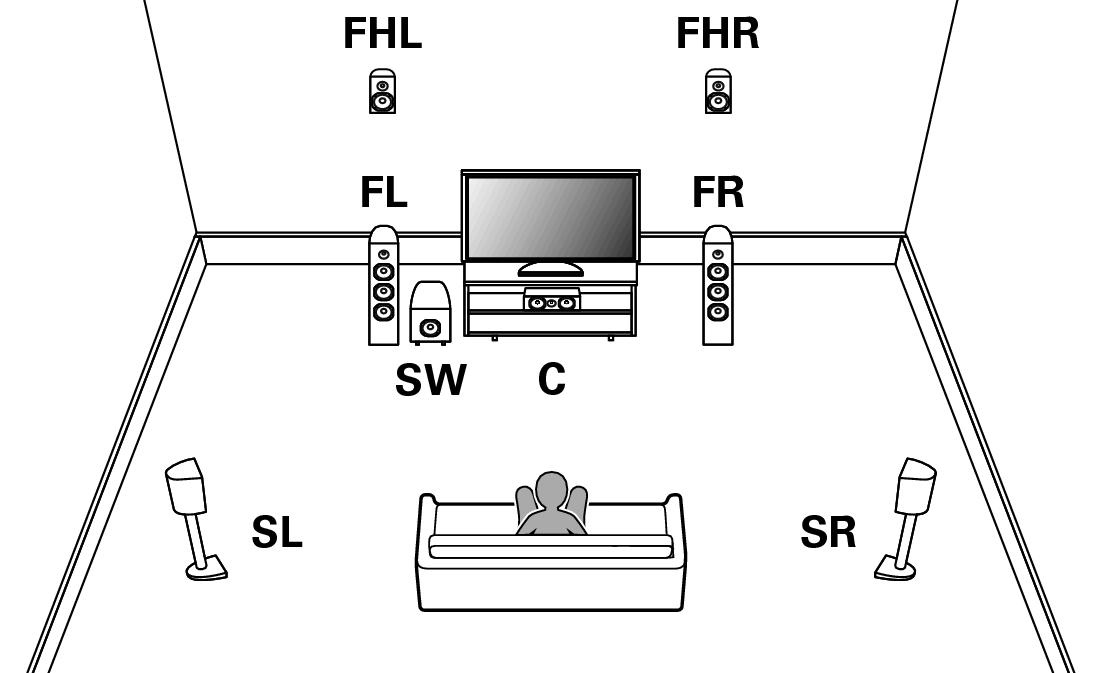

Example layout when using height speakers

This 7.1-channel surround system is the same as a basic 5.1-channel system but with front height speakers.

Pict SP Layout 7.1 FH1

For each speaker connection, refer to the following.

Set Speaker Layout in the menu as follows. link

Center: Yes
Surround: Yes
Height Speakers: 2 spkrs
Layout: Front Height Flower Mark
Subwoofers: 1 spkr

The front height speakers can be changed to other height, ceiling or Dolby Atmos Enabled speakers in the “Speaker Layout” - “Layout” settings.
