Rear panel

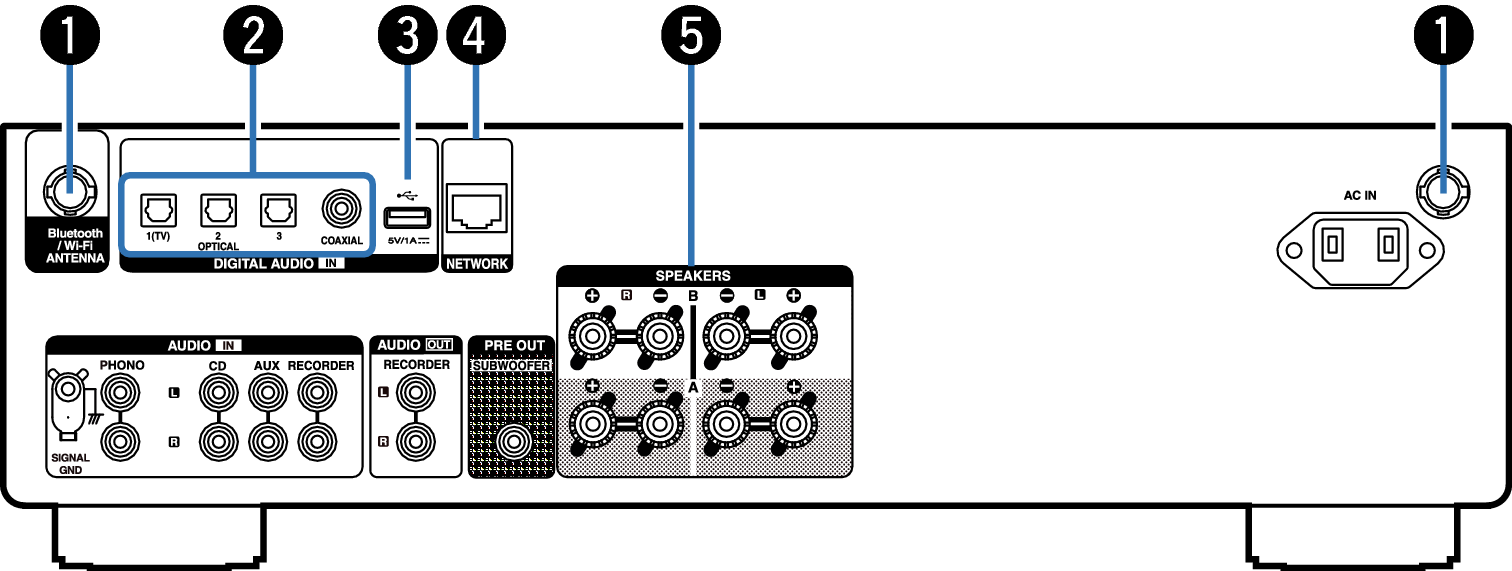

Name Rear small PMA900HNE 1

Bluetooth/wireless LAN antenna connectors

Used to connect the included external antennas for Bluetooth/wireless connectivity when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. link

Place the external antennas for Bluetooth/wireless connectivity evenly over the screw terminal of rear.
Turn clockwise until the antennas is fully connected.
Rotate the antenna upwards for best reception.

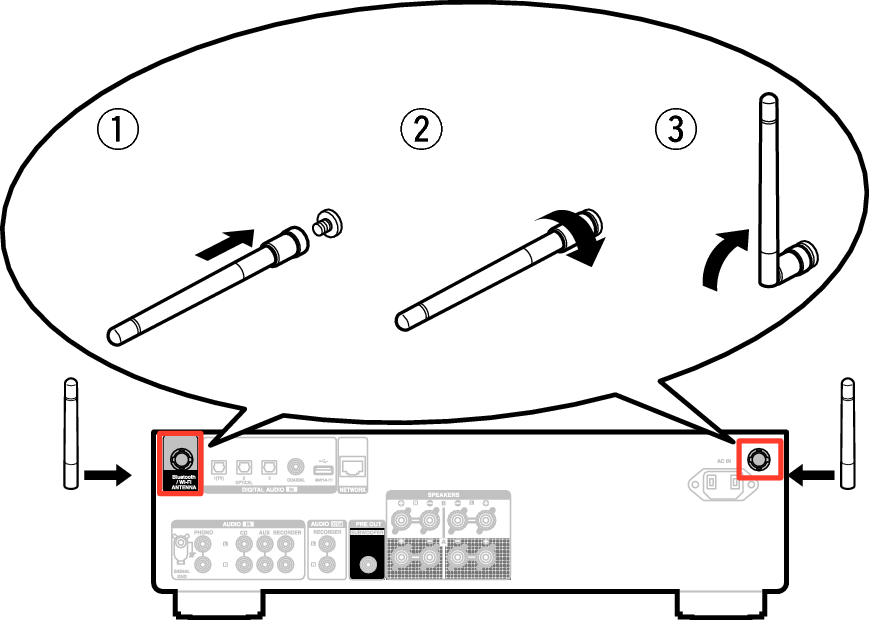

Pict AntennaAngle PMA900HNE

DIGITAL AUDIO IN connectors

Used to connect devices equipped with digital audio output connectors. link

USB port ( Icon USB )

This is used to connect USB storages (such as USB flash drives).
link

NETWORK connector

Used to connect to a LAN cable when connecting to a wired LAN network. link

Speaker terminals (SPEAKERS)

Used to connect speakers. link

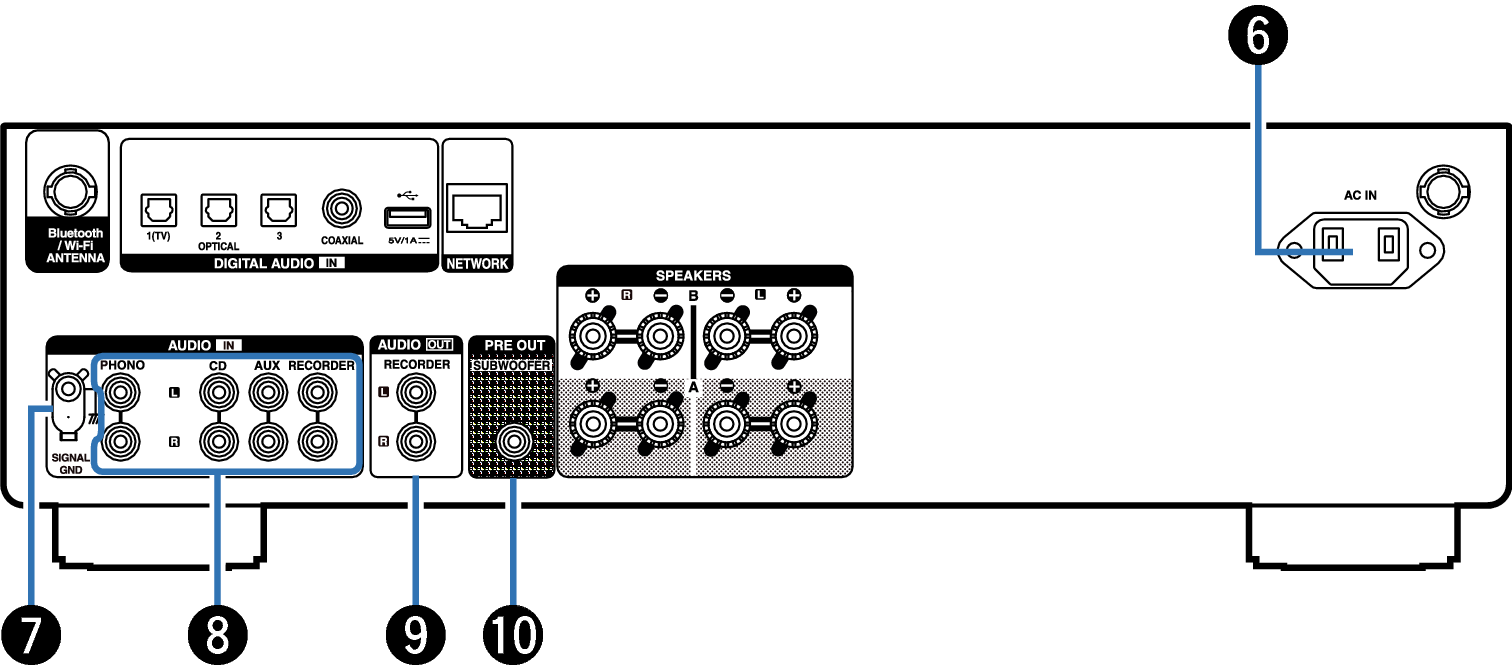

Name Rear small PMA900HNE 2

AC inlet (AC IN)

Used to connect the power cord. link

SIGNAL GND terminal

Used to connect a ground wire for the turntable. link

AUDIO IN connectors

Used to connect devices equipped with analog audio output connectors.

Connecting a playback devicelink

Connecting a recording devicelink

AUDIO OUT connectors

Used to connect the input connector of a recorder. link

PRE OUT connector

Used to connect a subwoofer with a built-in amplifier. link
