Remote control unit

The remote control provided with this unit can control a Denon CD player.

CD player operationslink

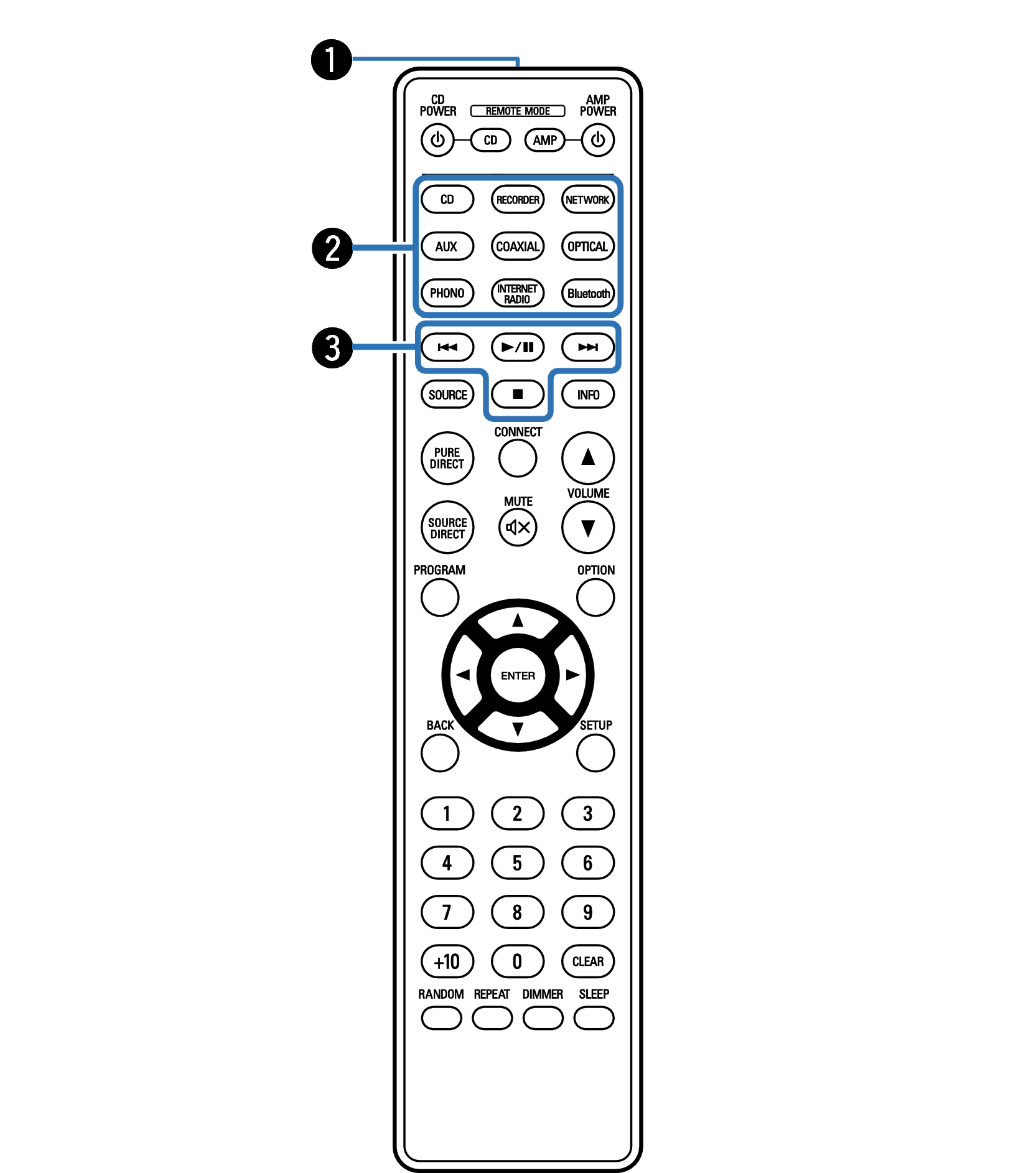

Operating this unit

To operate this unit, press REMOTE MODE AMP button to switch the remote control operating mode to this unit.

Remote control signal transmitter

This transmits signals from the remote control unit. link

Input source select buttons

These select the input source. link

System buttons

These perform playback related operations.

Play/Pause button ( Triangle Right / Pause )

Press this button to pause during playback. If pressed while paused or stopped, resumes playback from the last track played.

Forward-skip button ( Skip-Right )

Press this button during playback to play the next track.

Reverse-skip button ( Skip-Left )

Press this button during playback to restart the current track or play the previous track.

Stop button ( Square Black )

Press this button to stop during playback.

Depending on the input source and online service, the operation cannot be performed.

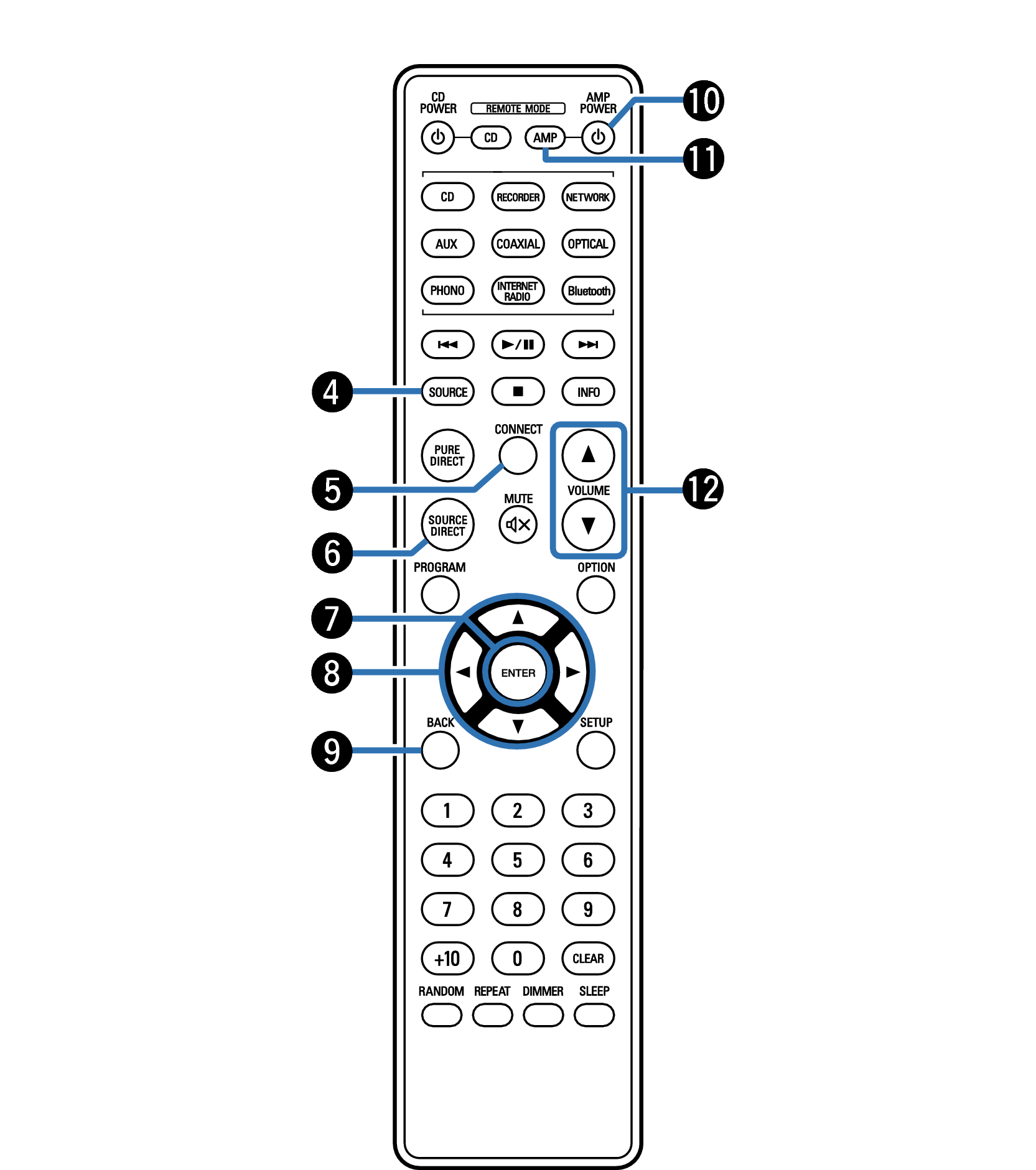

Input source select button (SOURCE)

This switches input sources. link

CONNECT button

Used for Wi-Fi setup. link

SOURCE DIRECT button

Switches the source direct mode. link

ENTER button

This determines the selection.

Cursor buttons ( )

These select items.

BACK button

Returns to the previous item.

Power operation button (AMP POWER )

This turns the power on/off (standby). link

Remote mode select button
(REMOTE MODE AMP)

Switches the remote control operating mode to this unit.

VOLUME buttons ( )

These adjust the volume level. link

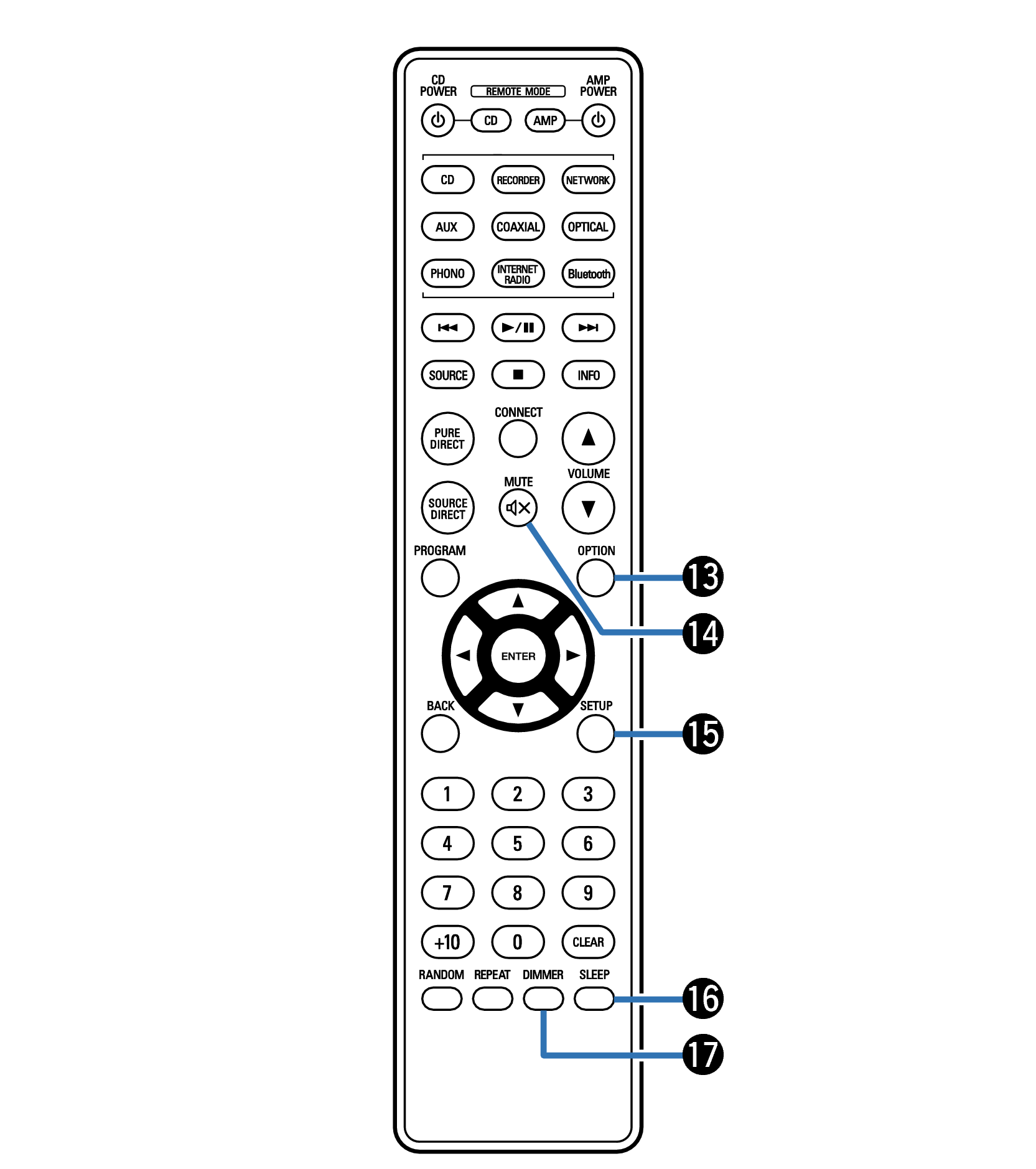

OPTION button

This displays the option menu on the display.

An option menu is not displayed for some input sources.

MUTE button ( )

This mutes the output audio. link

SETUP button

The setting menu is displayed on the display. link

SLEEP button

This sets the sleep timer. link

DIMMER button

Adjust the display brightness of this unit. link

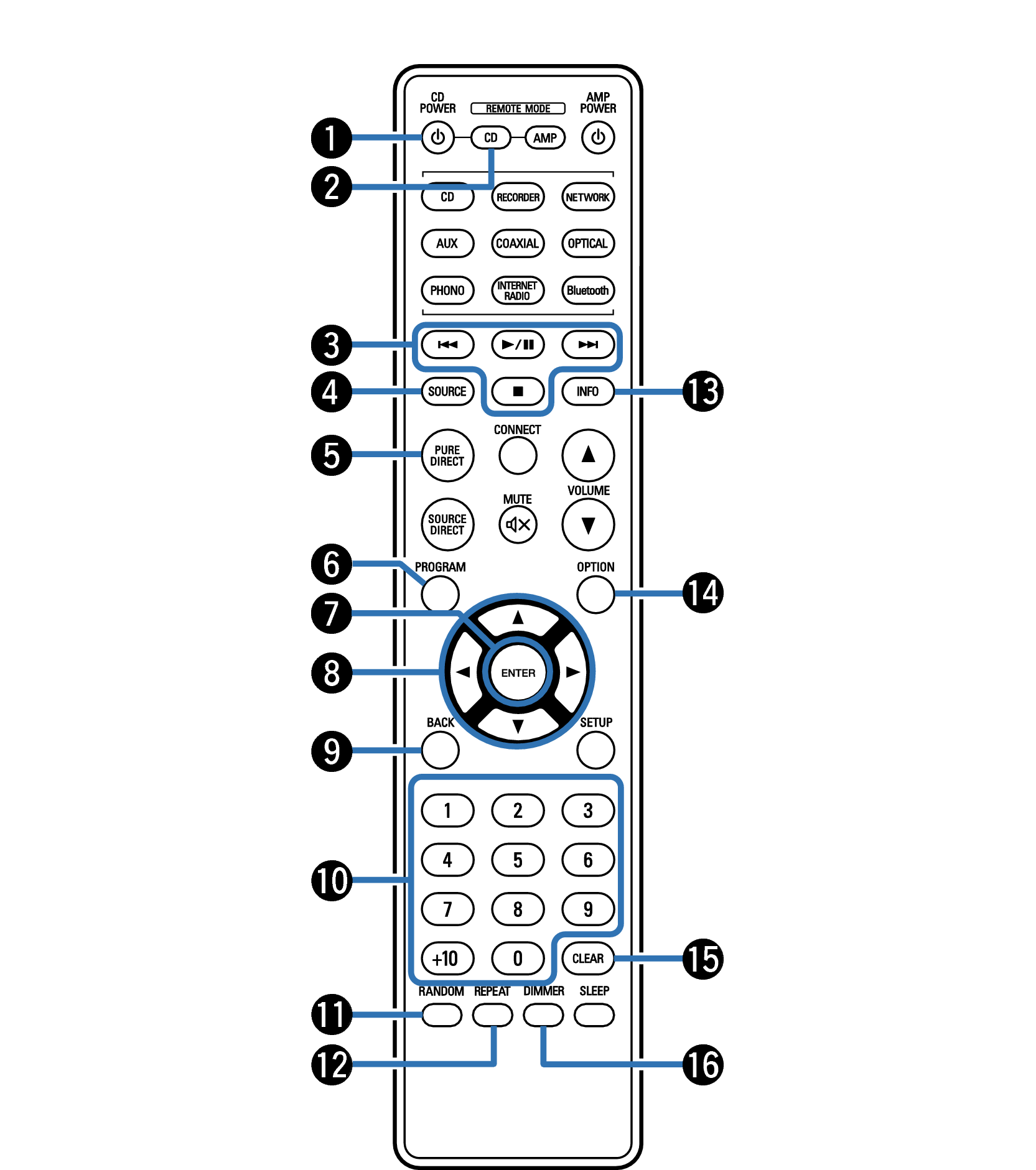

CD player operations

A Denon CD player can be operated.

To operate CD player, press REMOTE MODE CD button to switch the remote control to the CD player operation mode.
