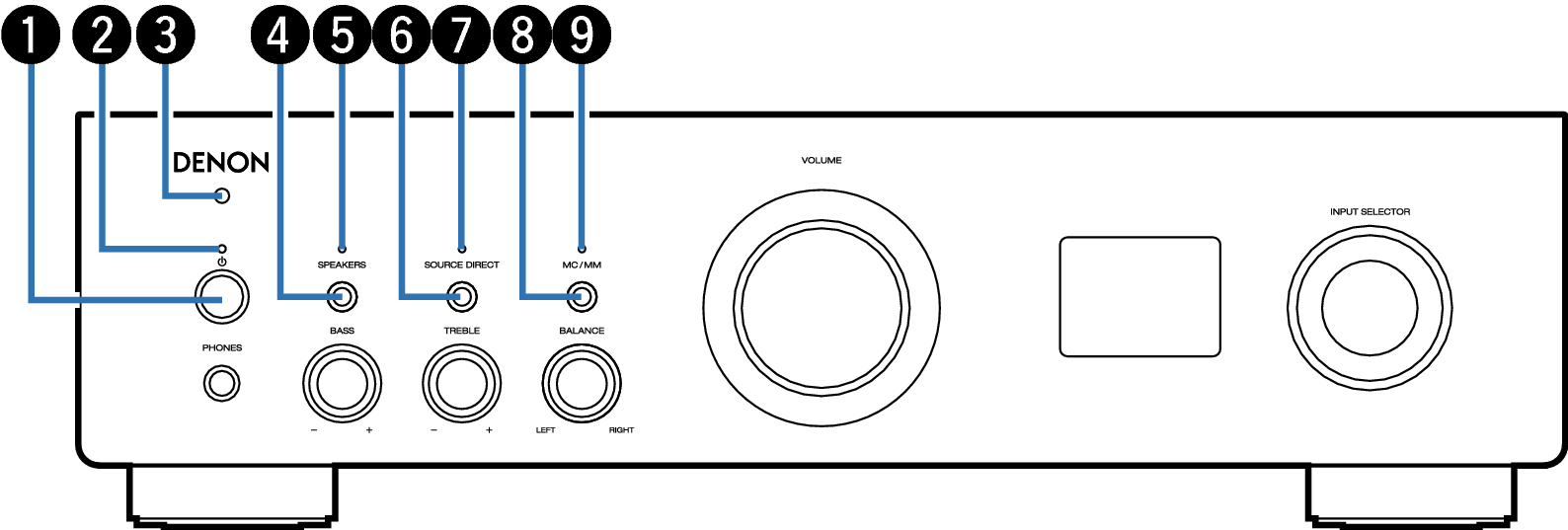

Front panel
Power operation button (
)
This turns the power on/off (standby). link
Power indicator
This is lit as follows according to the power status:
Green: Power on
Off: Normal standby
Red:
When “Network Control” is set to “On”link
When “Auto-Play” is set to “On”link
Red (blinking):
When the protection circuit is activated link
Remote control sensor
This receives signals from the remote control unit. link
SPEAKERS button
This selects the speaker for audio output. link
SPEAKERS indicator
This is lit as follows, according to the speaker output setting.
SPEAKERS A: Green
SPEAKERS B: Green
SPEAKERS A+B: Green
Speaker output off: Off
SOURCE DIRECT button
This turns source direct mode on/off. link
SOURCE DIRECT indicator
This is lit as follows according to the source direct status.
Source direct mode on: Green
Source direct mode off: Off
MC/MM button
Switch between MM or MC to match the type of cartridge used in the record player connected to this unit.
MC/MM indicator
This is lit as follows according to the setting of the phono equalizer of this unit:
MC: Green
MM: Off

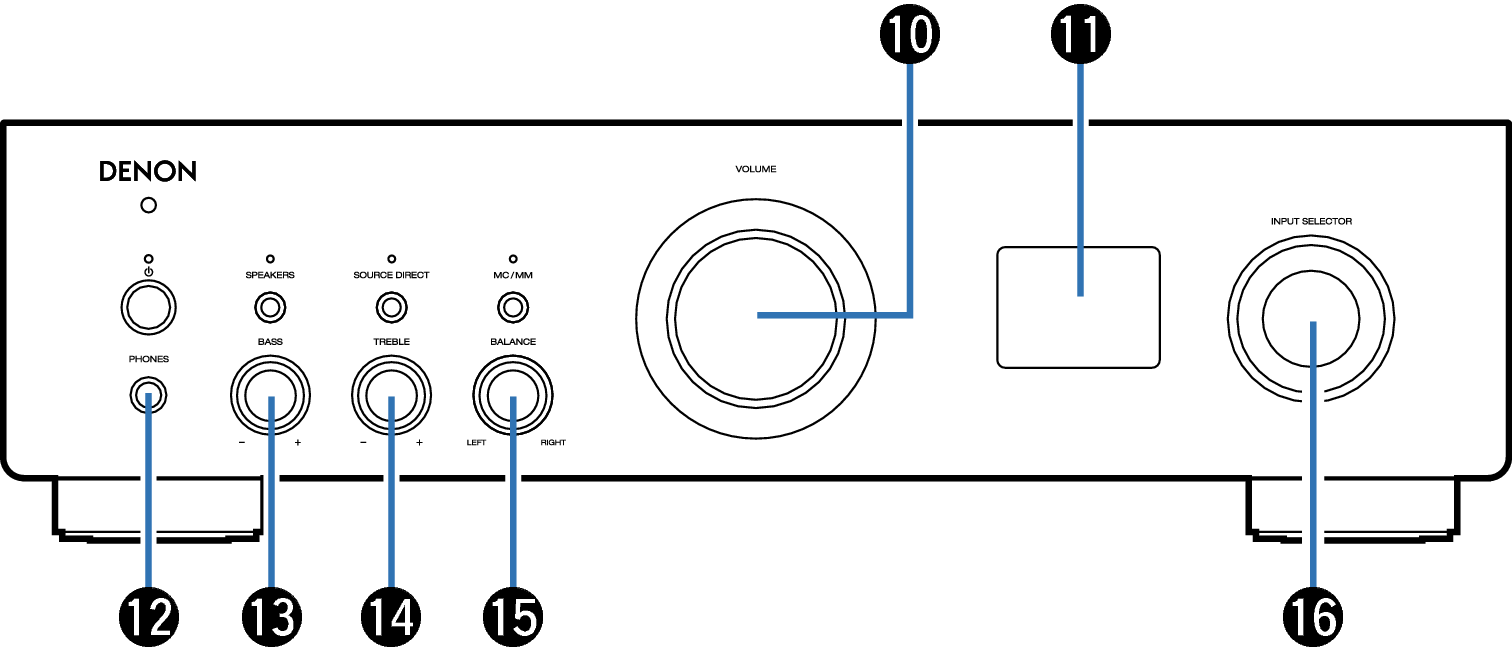

VOLUME knob
Adjusts the volume. link
Display
This displays various pieces of information.
Headphones jack (PHONES)
Used to connect headphones.
Press the SPEAKERS button on the main unit to turn off speaker output when using headphones. link
NOTE
To prevent hearing loss, do not raise the volume level excessively when using headphones.
BASS control knob
This setting adjusts the volume level for the bass. link
TREBLE control knob
This setting adjusts the volume level for the treble. link
BALANCE control knob
This adjusts the balance of the volume output from the left and right speakers. link
INPUT SELECTOR knob
This switches input sources. link
,
and
can be adjusted when
is off (Source direct mode is off). link
