Connecting the subwoofer

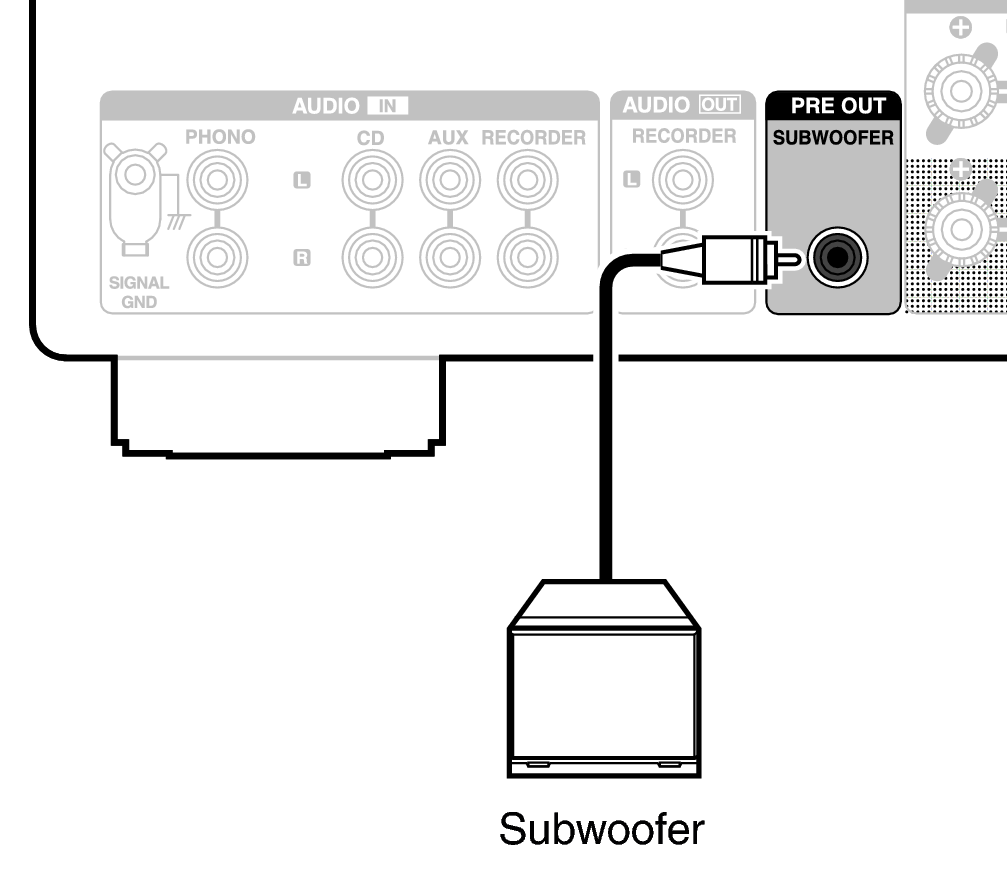

Use a subwoofer cable to connect the subwoofer.

Conne SW PMA900HNE

The subwoofer volume is linked to the Speaker A volume.

When the speaker for audio output is set to “Speakers B”, this unit does not output to the subwoofer. link
