Playing music from a Bluetooth device

Activate the Bluetooth setting on your mobile device.
Press the Bluetooth button ( Button Bluetooth ) located on the rear panel of the speaker.

When playing content via Bluetooth on the speaker for the first time, the speaker automatically enters pairing mode, and the status LED blinks blue twice.

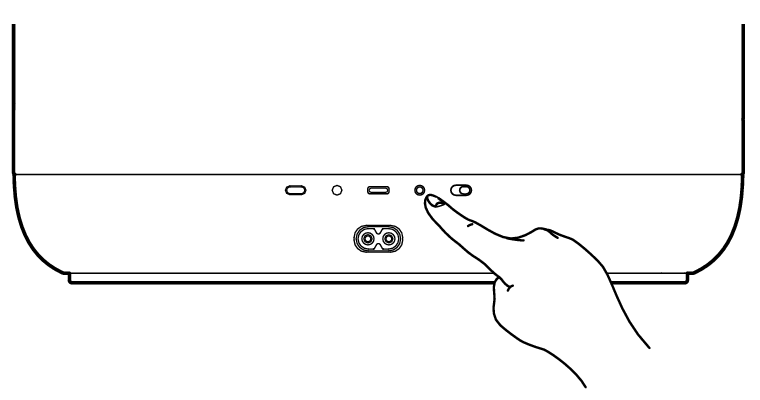

To pair with other Bluetooth devices, press and hold the Bluetooth button ( Button Bluetooth ) for 3 seconds until the status LED blinks blue twice.

Pict BT DH400
Select “Denon Home 400” from the list of available Bluetooth devices.

In a few seconds your mobile device will indicate that it is connected to your speaker.

Play music using any app on your device.

The sound will now play from the speaker.

NOTE

If no sound is heard, disconnect and reconnect Bluetooth connections from your Bluetooth device.
