Wall or floor stand mounting

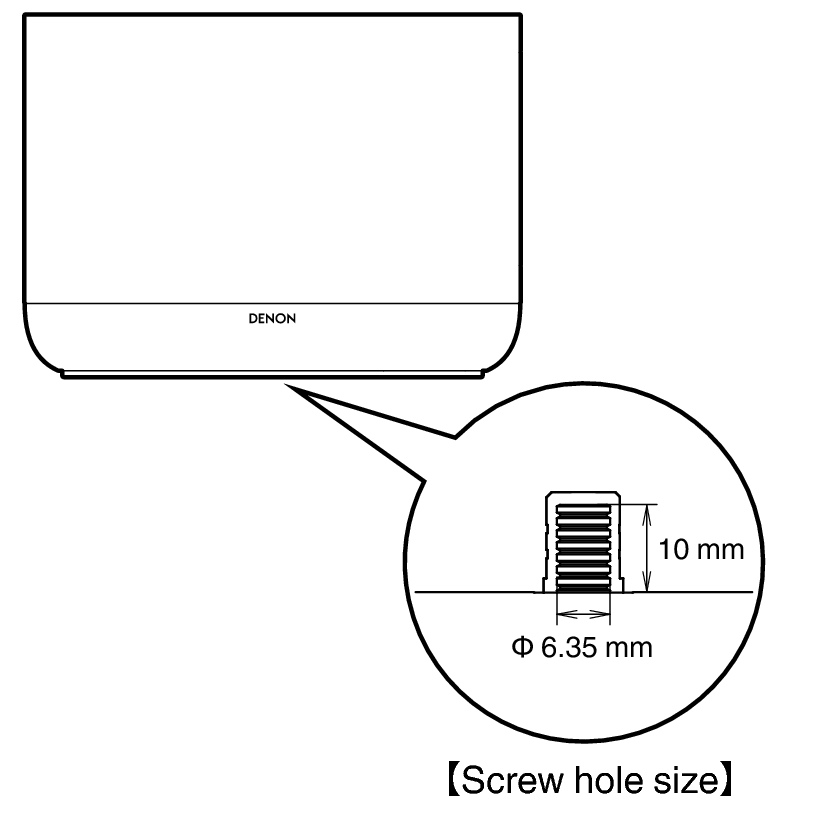

The speaker has a screw hole on the bottom and can be mounted on a wall or floor stand using a standard speaker or camera mount/attachment (6.35 mm diameter, 10 mm length) that supports at least 16.8 kg. For more information, contact the store you purchased the speaker.

Screw hole size DH400

Use a commercial bracket (not included) to attach this unit to the wall. Do not attach it directly to the wall.

If attaching this unit to the wall or floor stand, check that it is attached securely. Please be aware that Denon accepts no responsibility for any damage if the unit falls.

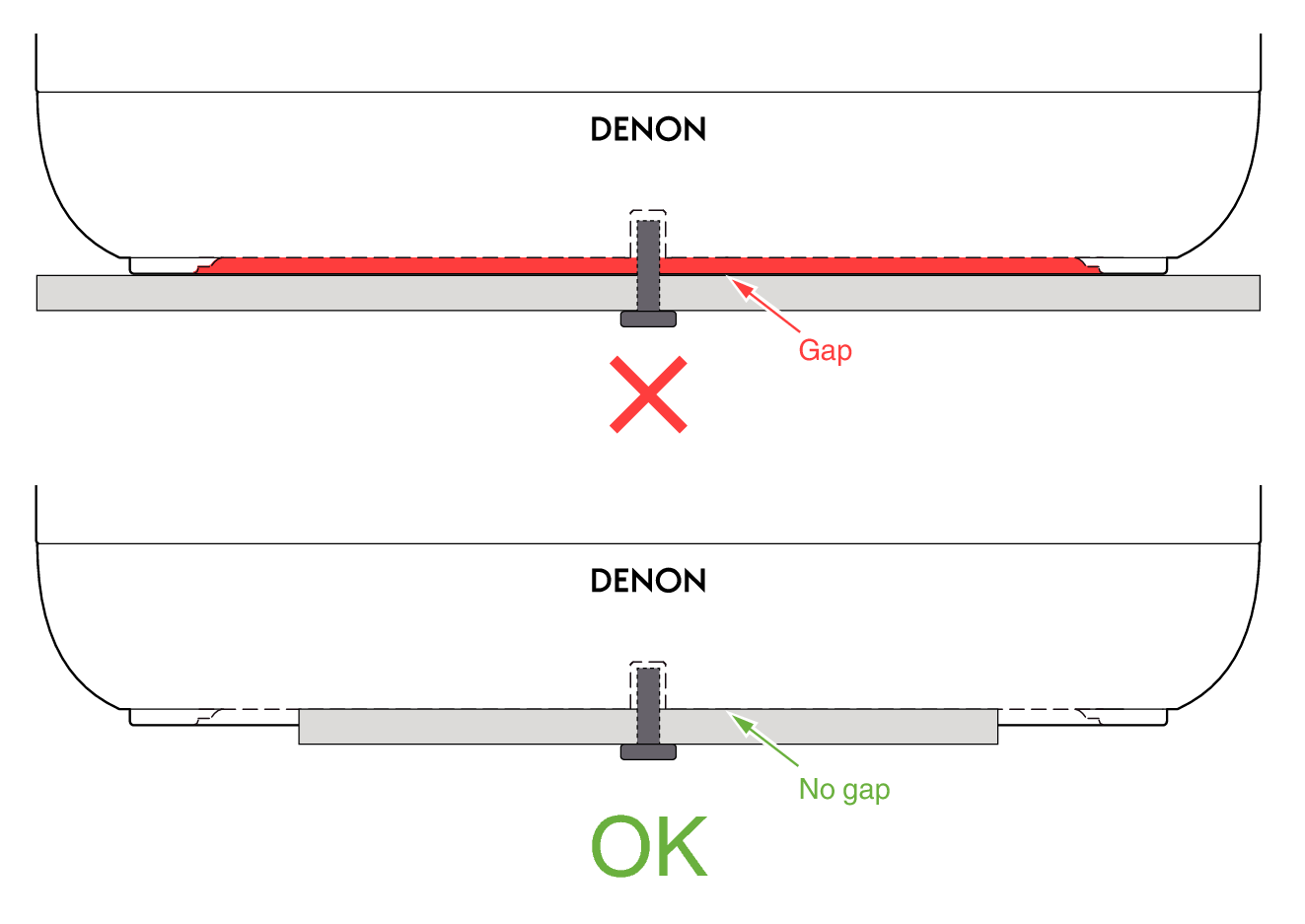

When using a commercial bracket (not included) to attach this unit to the wall, please ensure there is no gap between the base of the unit and the bracket.

Pict screw gap DH400

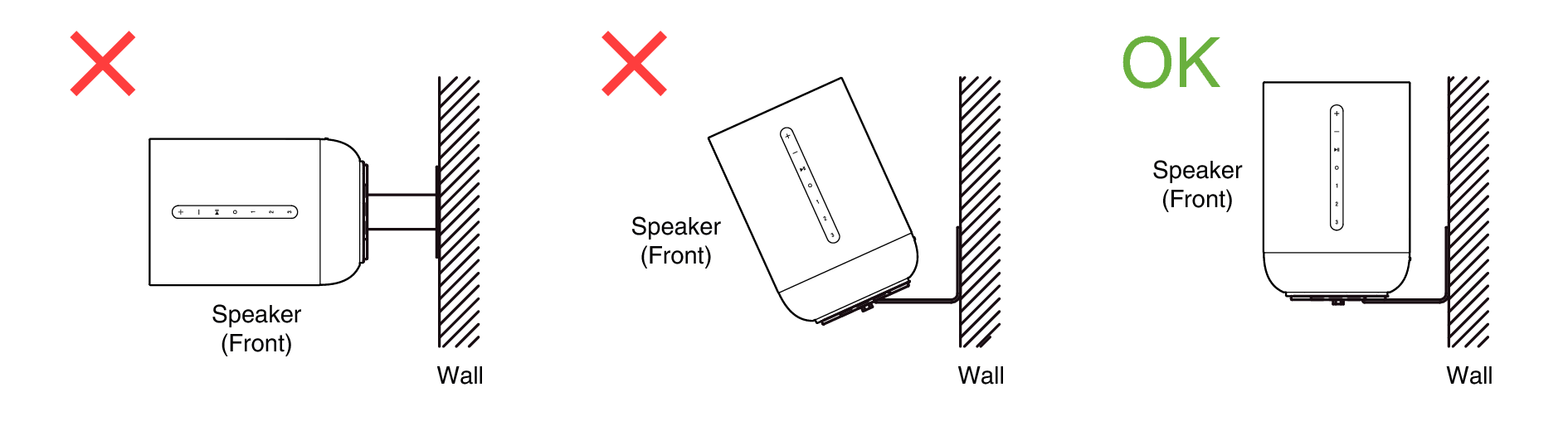

Attach the speaker such that the front does not face downwards.

Pict wall mount DH400
