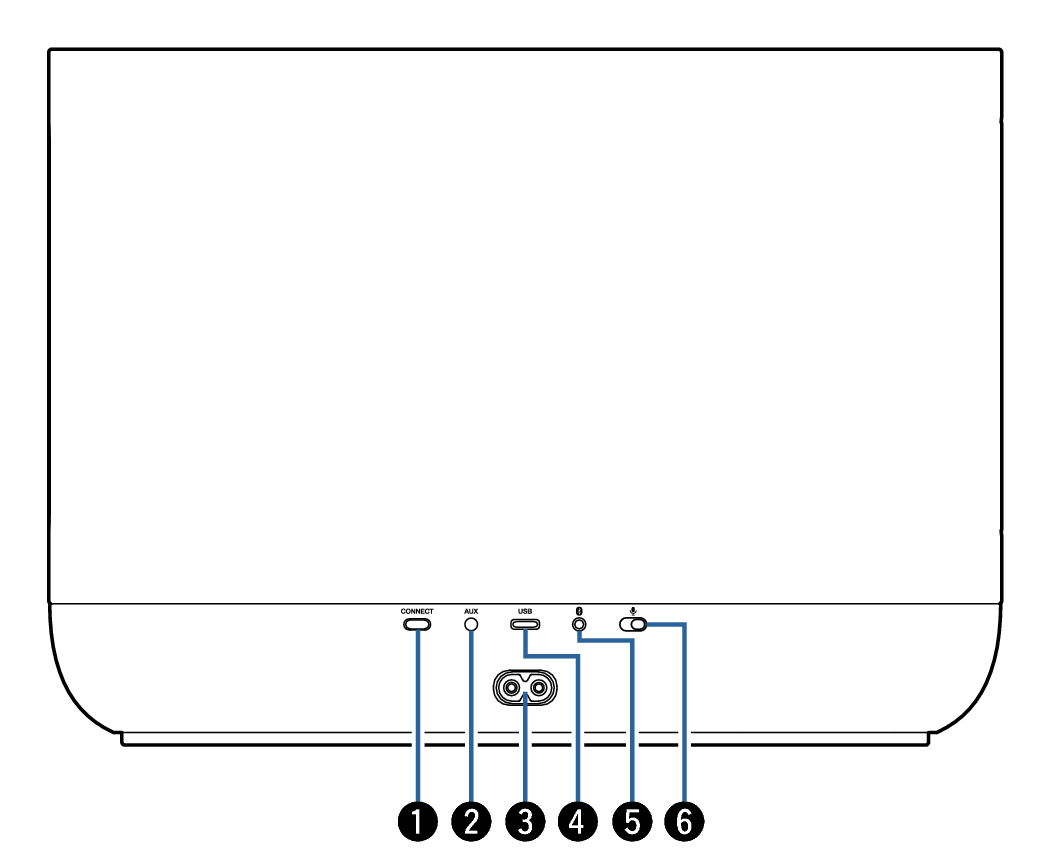

Rear panel

Name Rear DH400

CONNECT button

Used for Wi-Fi setup. link

AUX input connector (AUX)

Used to connect audio devices. link

AC inlet

Used to connect the power cord. link

USB-C_® port

Used to connect USB-C storage devices (such as USB flash drives). link

Used to connect this unit to a wired Ethernet network via a USB-C to Ethernet adapter (not included/An adapter up to 1Gbps is recommended). link

USB Type-C_® and USB-C_® are registered trademarks of USB Implementers Forum.

Bluetooth button ( )

Used in the Bluetooth pairing settings. link

Microphone mute switch ( )

Used to enable or disable the microphone function. In the state with the microphone function disabled, Siri does not respond even if called. Use this in cases such as when you want to protect your privacy. link

While the microphone is disabled, the action button ( ) is also disabled.
