Sound bar

General

Operating temperature:

41 °F - 95 °F (5 °C - 35 °C)

Power supply:

AC 100 – 240 V, 50/60 Hz (for Europe model)

AC 100 – 120 V, 50/60 Hz (for North America model)

Power consumption:

53 W
21 W (USB/1 A)

Power consumption in quick start mode:

7.4 W (HDMI IN)
7.0 W (Wi-Fi)
7.2 W (Ethernet)
7.4 W (Bluetooth)
7.7 W (HDMI OUT(ARC))

Power consumption in deep standby mode:

0.4 W

Max analog input:

2 Vrms

Wireless LAN section

Network type (wireless LAN standard):

Conforming to IEEE 802.11a/b/g/n/ac

(Wi-Fi® compliant)∗1

Used frequency range:

2.4 GHz, 5 GHz

The Wi-Fi® CERTIFIED Logo and the Wi-Fi CERTIFIED On-Product Logo are registered trademarks of the Wi-Fi Alliance.

Bluetooth section

Communications system:

Bluetooth Version 4.2

Transmission power:

Power Class 2

Maximum communication range:

Approx. 32.8 ft/10 m in line of sight∗2

Used frequency range:

2.4 GHz band

Modulation scheme:

FHSS (Frequency-Hopping Spread Spectrum)

Supported profiles:

A2DP (Advanced Audio Distribution Profile) 1.3

AVRCP (Audio Video Remote Control Profile) 1.6

Corresponding codec:

SBC

Transmission range (A2DP):

20 Hz – 20,000 Hz

The actual communication range varies depending on the influence of such factors as obstructions between devices, electromagnetic waves from microwave ovens, static electricity, cordless phones, reception sensitivity, antenna performance, operating system, application software etc.

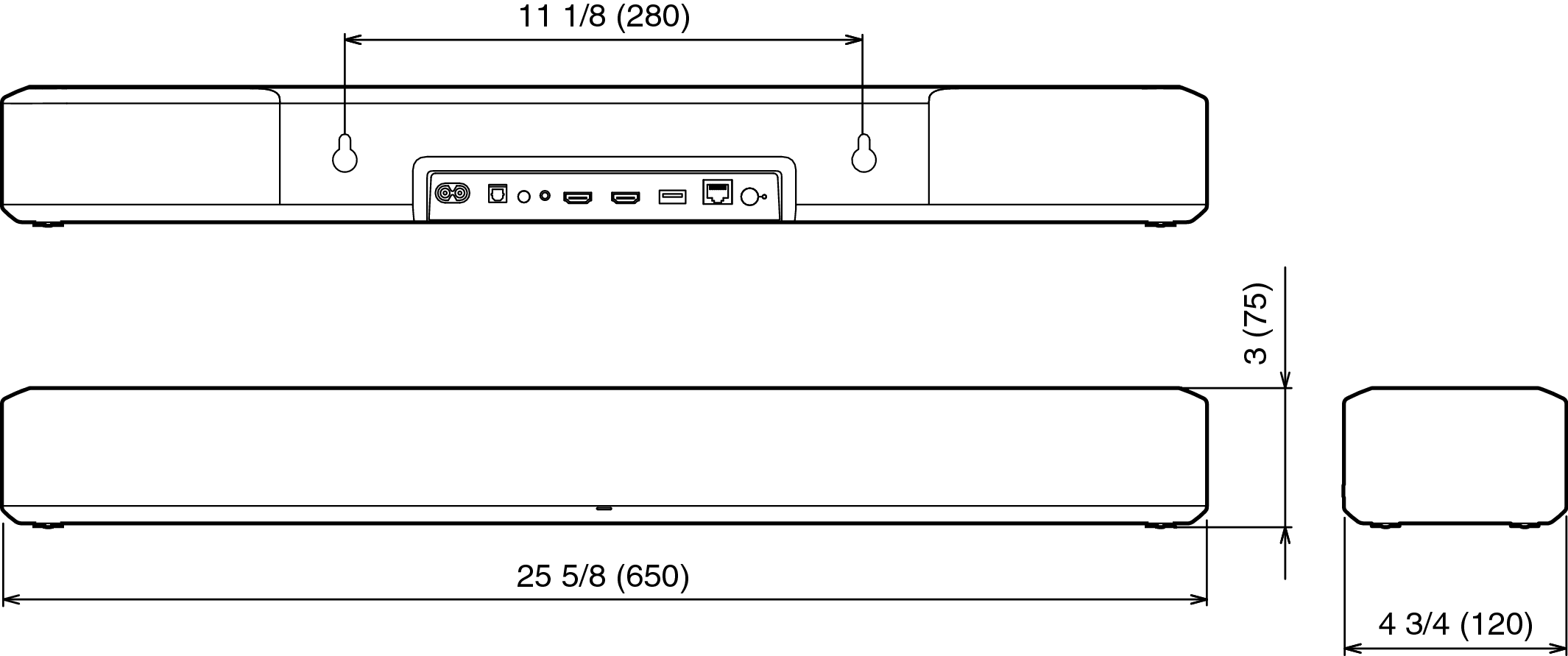

Dimensions (Unit : in. (mm))

Size Bar SB550E2E3

Weight : 7 lbs 11 oz (3.5 kg)
