Playing TV, movies and music

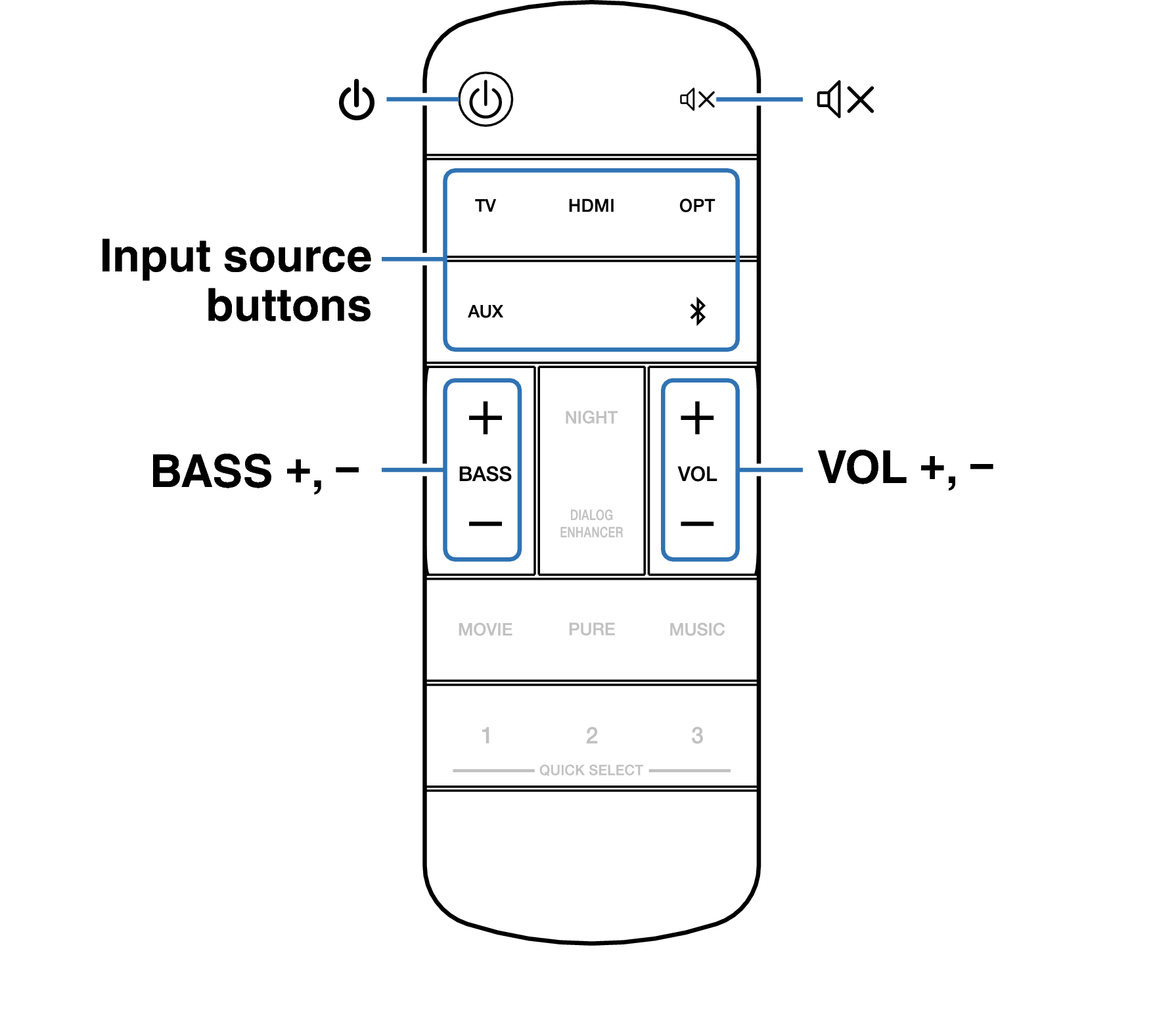

Ope Play RC SB550
Turn on the power of the TV and connected devices.
Press Icon Power to turn on power to the sound bar.
Press the input source button.

When the button is pressed, the status LED blinks in blue, and the input source switches.

TV:

Switches the input source to TV (Default: HDMI OUT (eARC/ARC)).

HDMI:

Switches the input source to HDMI IN.

OPT:

Switches the input source to OPTICAL IN.

AUX:

Switches the input source to AUX IN.

Icon Bluetooth :

Switches the input source to Bluetooth.
Play the device connected to this unit.

For details, see the relevant device manual.

Connect an HDMI control-compatible TV and this unit via HDMI and enable the HDMI control to enable linked control from either device. link
