Status LED table

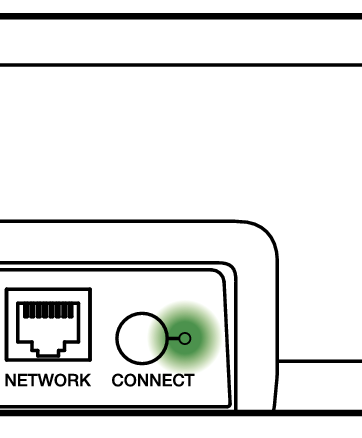

The LEDs on the front panel and rear panel change to indicate the current sound bar status.

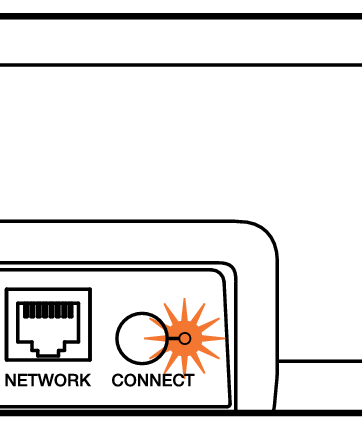

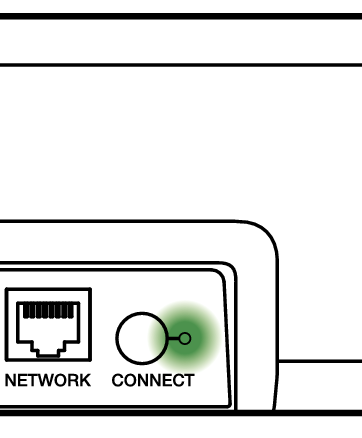

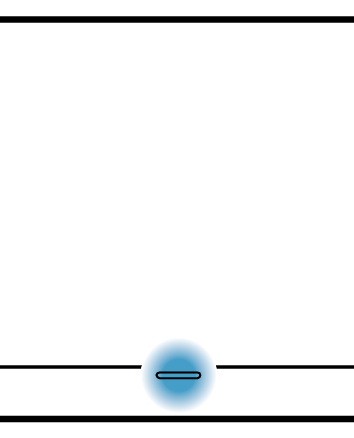

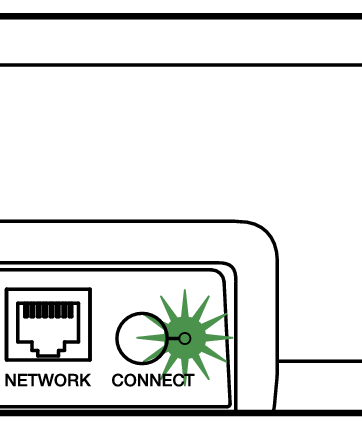

Status	Front LED action	Rear LED action	Description

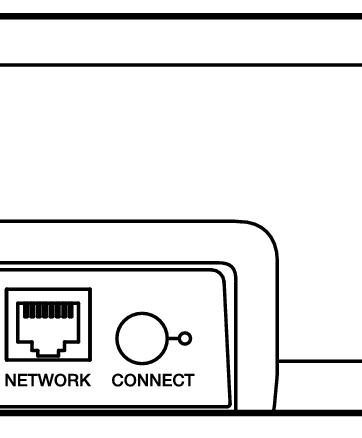

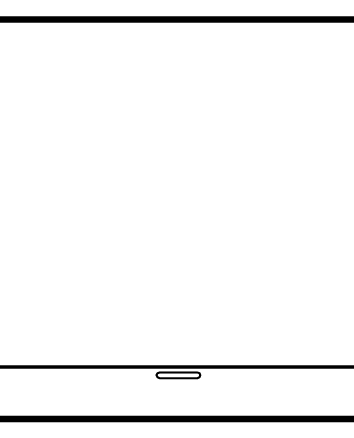

Deep standby mode	(off)	(off)	Power is off, or the sound bar is in deep standby mode. link
Quick start mode	(dimmed solid)	(off)	Sound bar is in quick start mode (Connected to your network). link
Quick start mode	(dimmed solid)	(dimmed solid)	Sound bar is in quick start mode (Not connected to your network). link

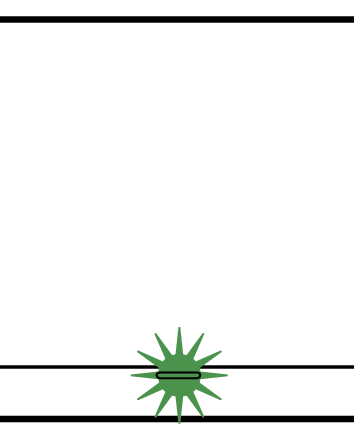

Power on	(blink)	(off)	Sound bar is starting up or connecting to the network.
	(solid)	(off)	Sound bar is connected to the network.

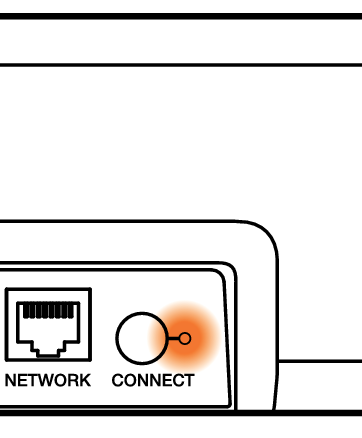

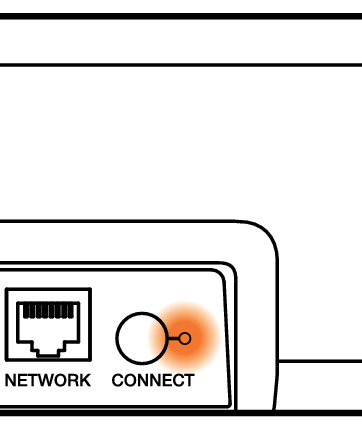

	(solid)	(solid)	Sound bar is unable to connect to the network. Try to connect the sound bar again.
WPS	(fast blink)	(fast blink)	Sound bar is connecting to the network via WPS.
	(for 3 sec. solid)	(solid)	Sound bar is connected to the network via WPS.
	(for 3 sec. solid)	(solid)	WPS has timed out.
Bluetooth	(two blinks)	(two blinks)	Sound bar is pairing via Bluetooth.
	(one blink)	(off)	Sound bar is paired via Bluetooth.
	(for 3 sec. solid)	(for 3 sec. solid)	Sound bar failed to pair to the Bluetooth device. Try to pair again. link
Volume setting	(quick blink)	(off)	Volume is being adjusted.
Volume setting	(slow blink)	(off)	Sound bar is muted.
Firmware update	(blink)	(blink)	Firmware is being updated.
Firmware update	(slow blink (Not fade))	(off)	There is a firmware error. Check your usage environment, relaunch the app, then try to update the firmware again.
Error	(solid)	(solid)	There was a setup error. Check your usage environment, then follow the correct procedure to try setup again. If the error occurs again, restore factory settings and try setup again. link
Error	(fast blink)	(off)	There is a hardware error. Unplug the power cord, wait a little while, then plug the power cord back in.
Reset	(fast blink)	(solid)	Factory settings have been restored.
