Playing music from a USB flash drive

Perform this operation on the HEOS App. Download the HEOS App in advance to your iOS or Android device. link

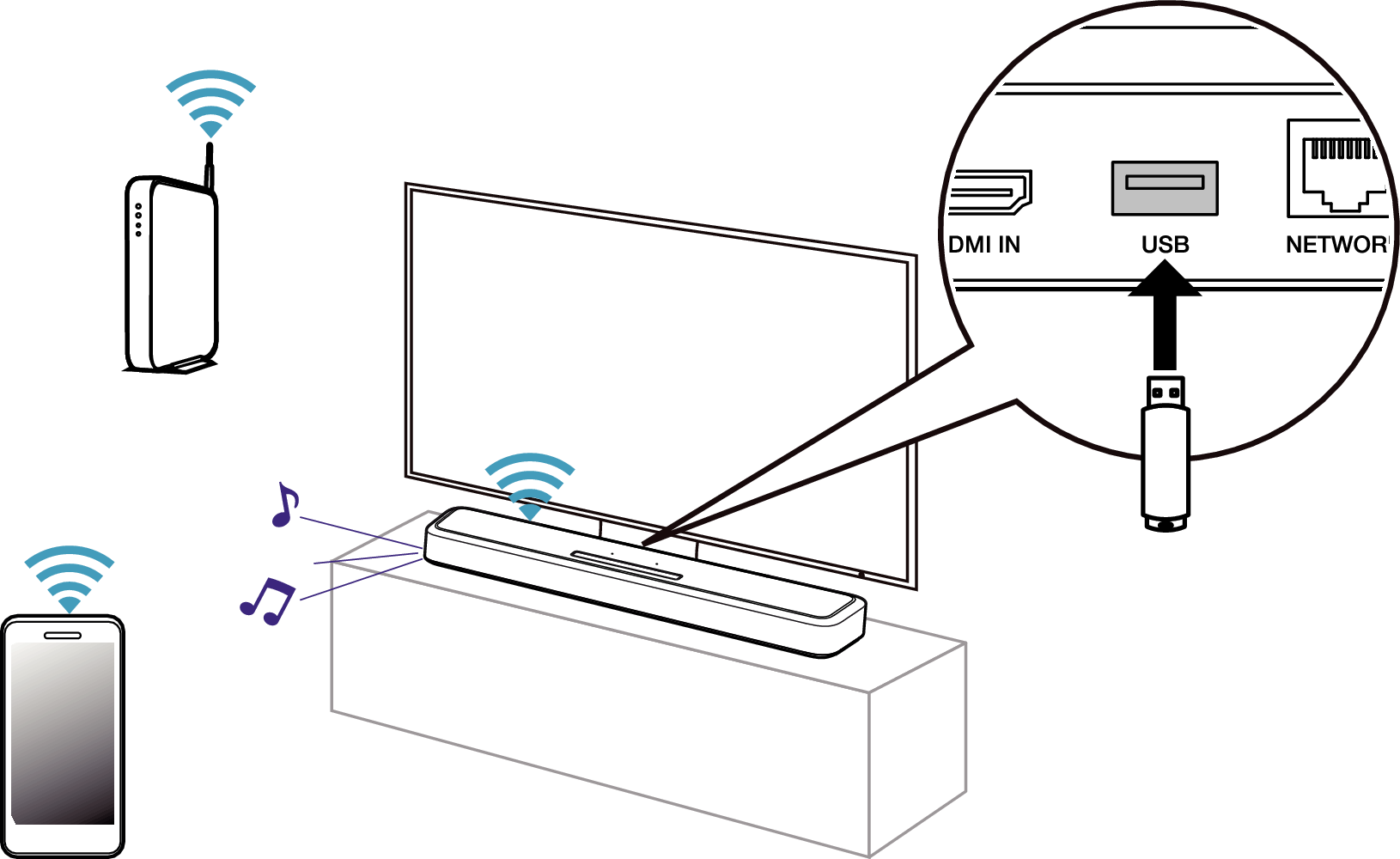

Insert a FAT32 or NTFS formatted USB flash drive into the USB port on the rear panel of the sound bar.

Select “USB Music” from the “Music” tab.

Select the name of this unit.

Browse the music on your USB flash drive and select something to play.

It may take several minutes for the name of this unit to appear in the “USB Music” list if you have a large number of files on your USB flash drive.

It is not possible to connect and use a computer via the USB port of this unit using a USB cable.
