Before using the remote control unit

The remote control unit has a built-in lithium battery.

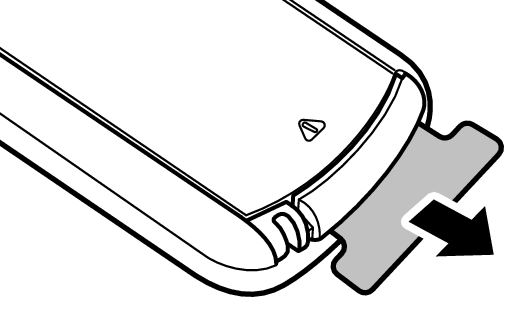

Pull out the insulation sheet before use.

Input Battery 0 SB550

Replacing the battery

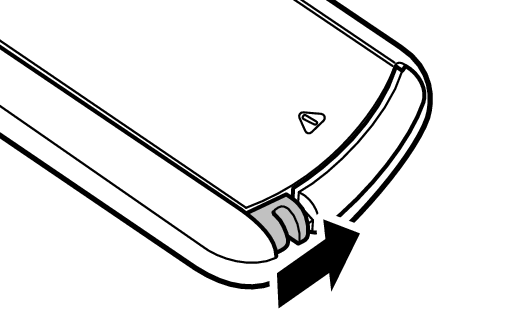

Lightly slide the catch of the battery case on the back of the remote control in the rightward direction.
Input Battery 1 SB550

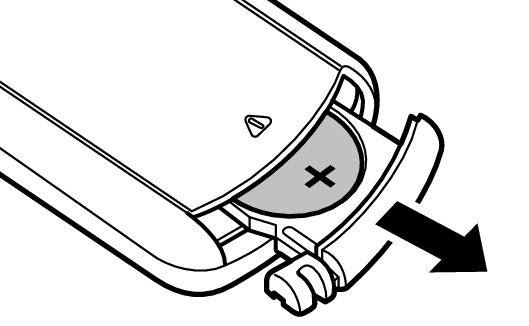

While pushing the catch lightly to the right, pull out the battery case.
Input Battery 2 SB550

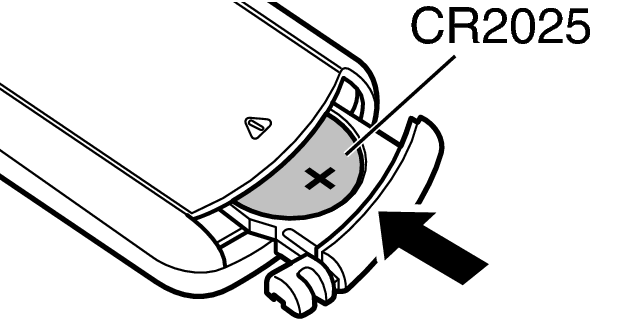

Remove the old battery, then insert a new coin-shaped lithium battery (CR2025) into the battery compartment so that the + symbol engraved on the battery faces upwards.
Replace the battery case in the original position.
Input Battery 3 SB550
NOTE

If the battery should have a leakage, immediately replace and dispose of the battery. In this case, there is a risk of burn when the liquid comes in contact with skins or clothes, so a great care should be taken. If the liquid accidentally comes in contact, wash with tap water and consult a doctor.

Remove the battery from the remote control unit if it will not be in use for long periods.
