Sound mode that can be selected for each input signal

The following sound modes can be selected using the MOVIE, MUSIC and GAME buttons.

Adjust the sound field effect with the menu “Surround Parameter” to enjoy surround sound the way you like it. link

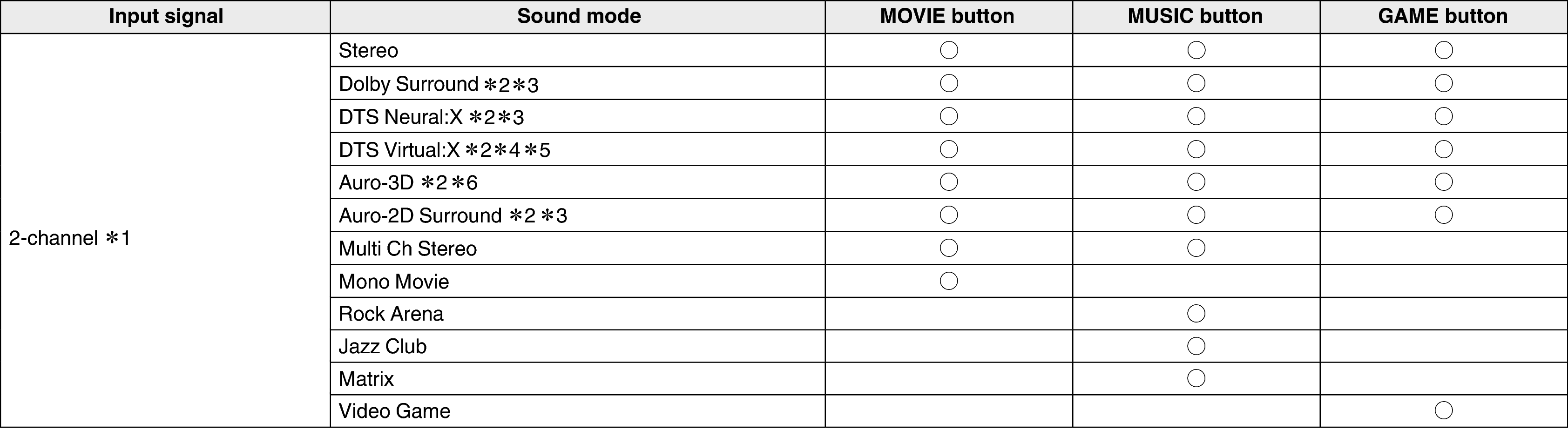

Soundmode1 X38

2-channel also includes analog input.

It cannot be selected when headphones are used.

It cannot be selected when the speaker configuration is front speakers only.

It cannot be selected when a speaker configuration with any height speakers is used.

It cannot be selected when the input signal is Dolby Digital, Dolby Digital Plus, Dolby TrueHD or Dolby Atmos.

It cannot be selected when a speaker configuration without front height or front Dolby Atmos Enabled speakers is used.

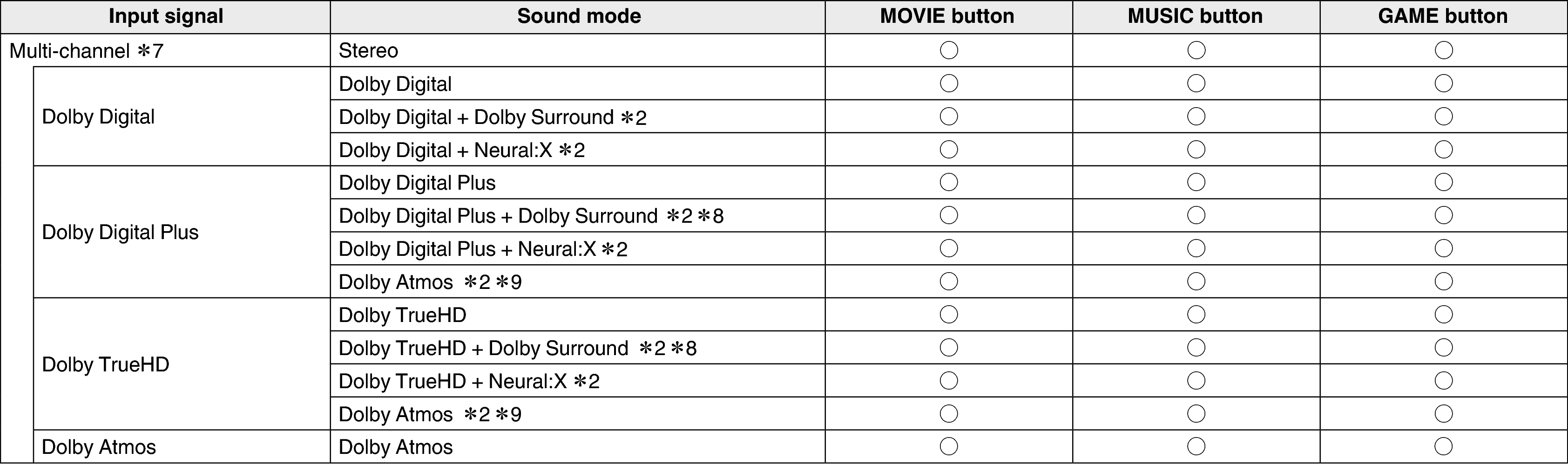

Soundmode2 X38

It cannot be selected when headphones are used.

The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels.

This can be selected when the input signal does not contain Dolby Atmos.

This can be selected when the input signal contains Dolby Atmos.

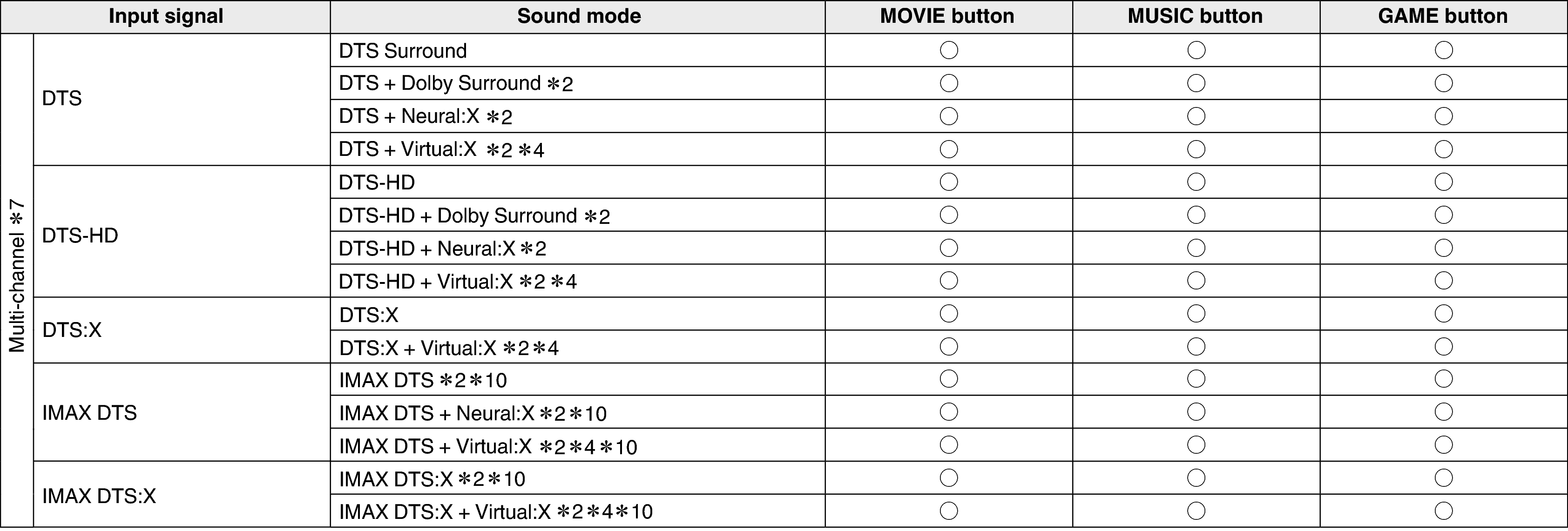

Soundmode3 X38

It cannot be selected when headphones are used.

It cannot be selected when a speaker configuration with any height speakers is used.

The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels.

Selectable when “Surround Parameter” - “IMAX” is set to “Auto” in the menu. When “IMAX” is set to “Off”, playback is normal DTS or DTS:X. link

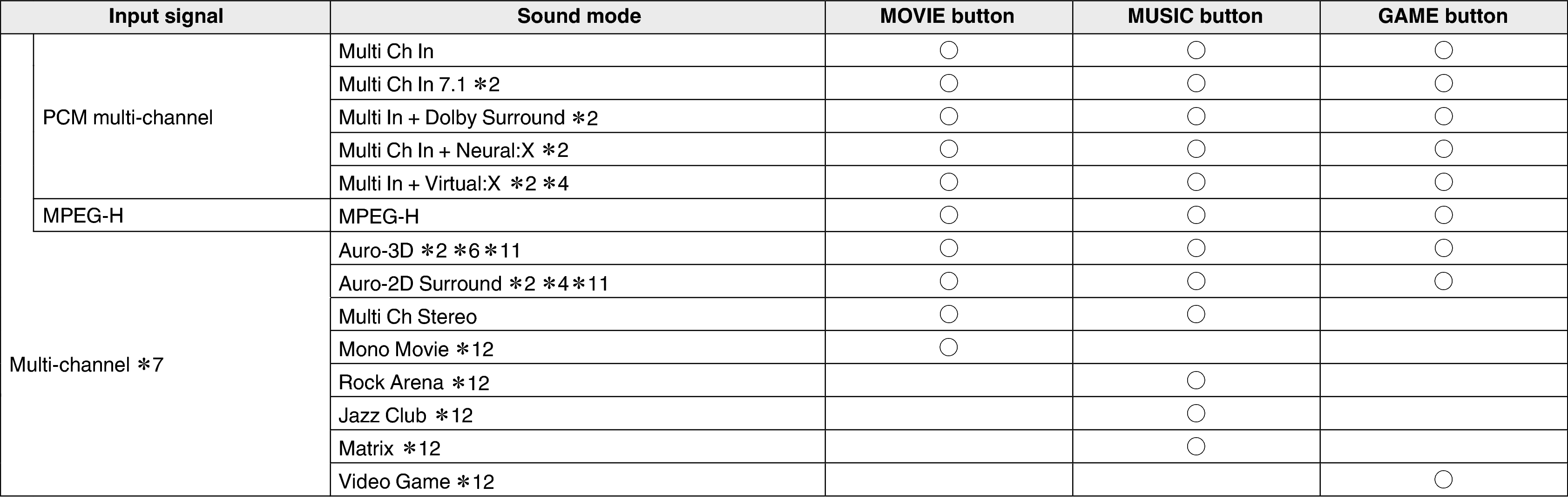

Soundmode4 X38

It cannot be selected when headphones are used.

It cannot be selected when a speaker configuration with any height speakers is used.

It cannot be selected when a speaker configuration without front height or front Dolby Atmos Enabled speakers is used.

The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels.

It cannot be selected when the input signal is Dolby Atmos, DTS:X and MPEG-H.

It cannot be selected when the input signal is MPEG-H.

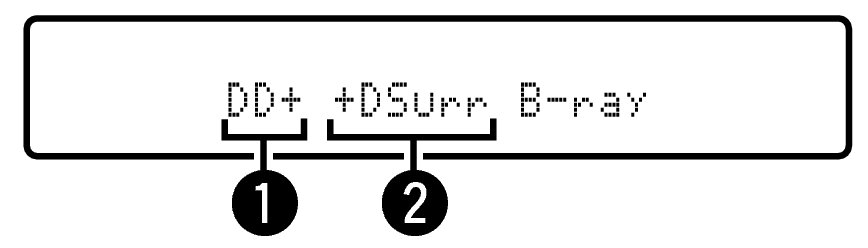

Views on the display

Disp DOLBY DIGITAL X38

Shows a decoder to be used.

In the case of the Dolby Digital Plus decoder, “ Icon DD plus ” is displayed.

Shows a decoder that creates sound output.

“ Icon DSurr ” indicates that the Dolby Surround decoder is being used.
