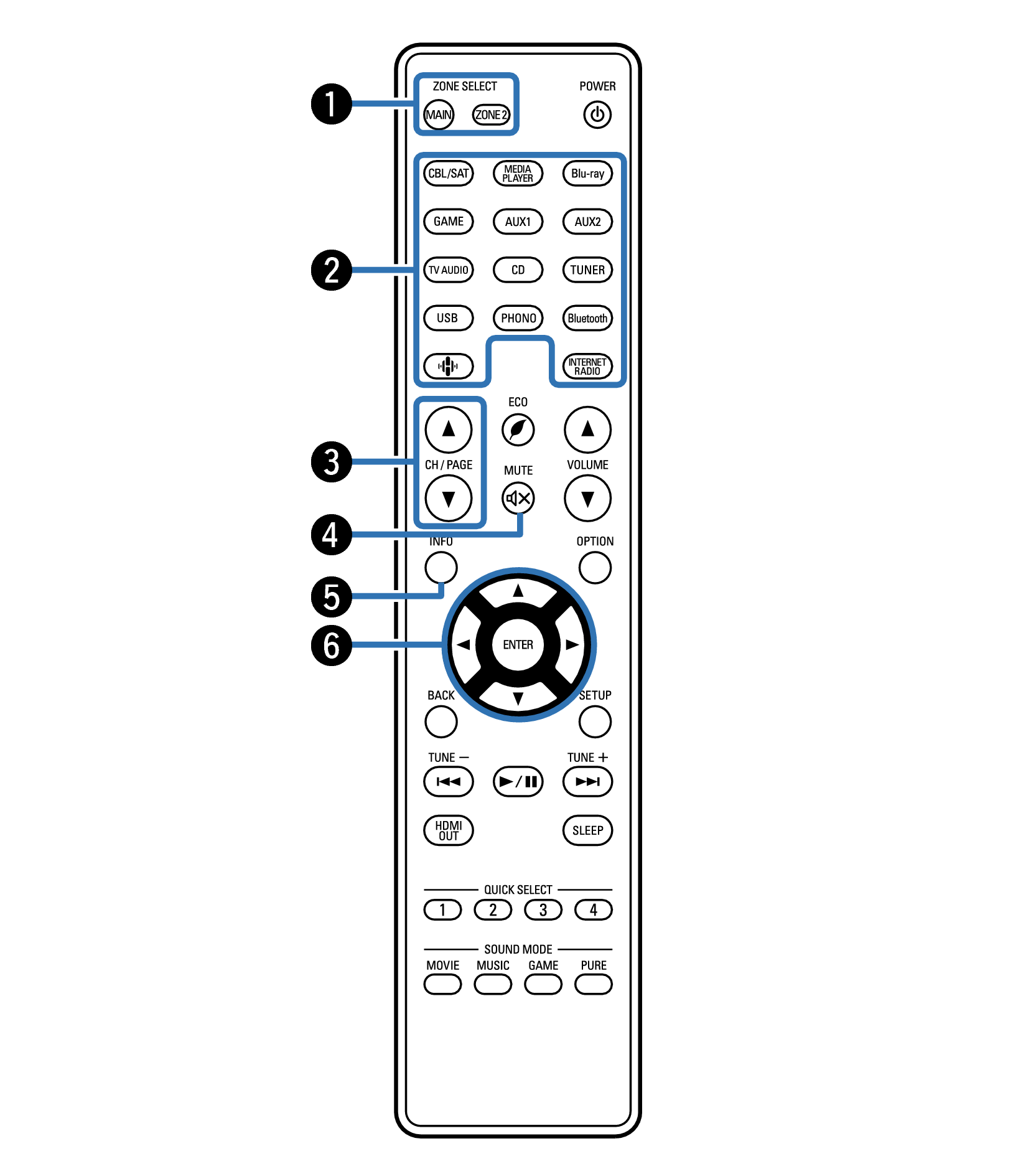

Remote control unit

Name RC1253

ZONE SELECT buttons

These switch the zone (MAIN ZONE, ZONE2) that is operated through the remote control unit.

Playing different sources in MAIN ZONE and ZONE2link

Menu operationslink

Input source select buttons

These selects the input source.

Selecting the input sourcelink

Playing different sources in MAIN ZONE and ZONE2link

Channel/page search buttons (CH/PAGE  kurosankaku Sankaku-Reverse )

These switch pages. link

MUTE button ( Silent )

This mutes the output audio.

Turning off the sound temporarily (Muting)link

Turning off the sound temporarily (Muting)link

Information button (INFO)

This displays the status information on the TV screen. link

Cursor buttons

These select items.

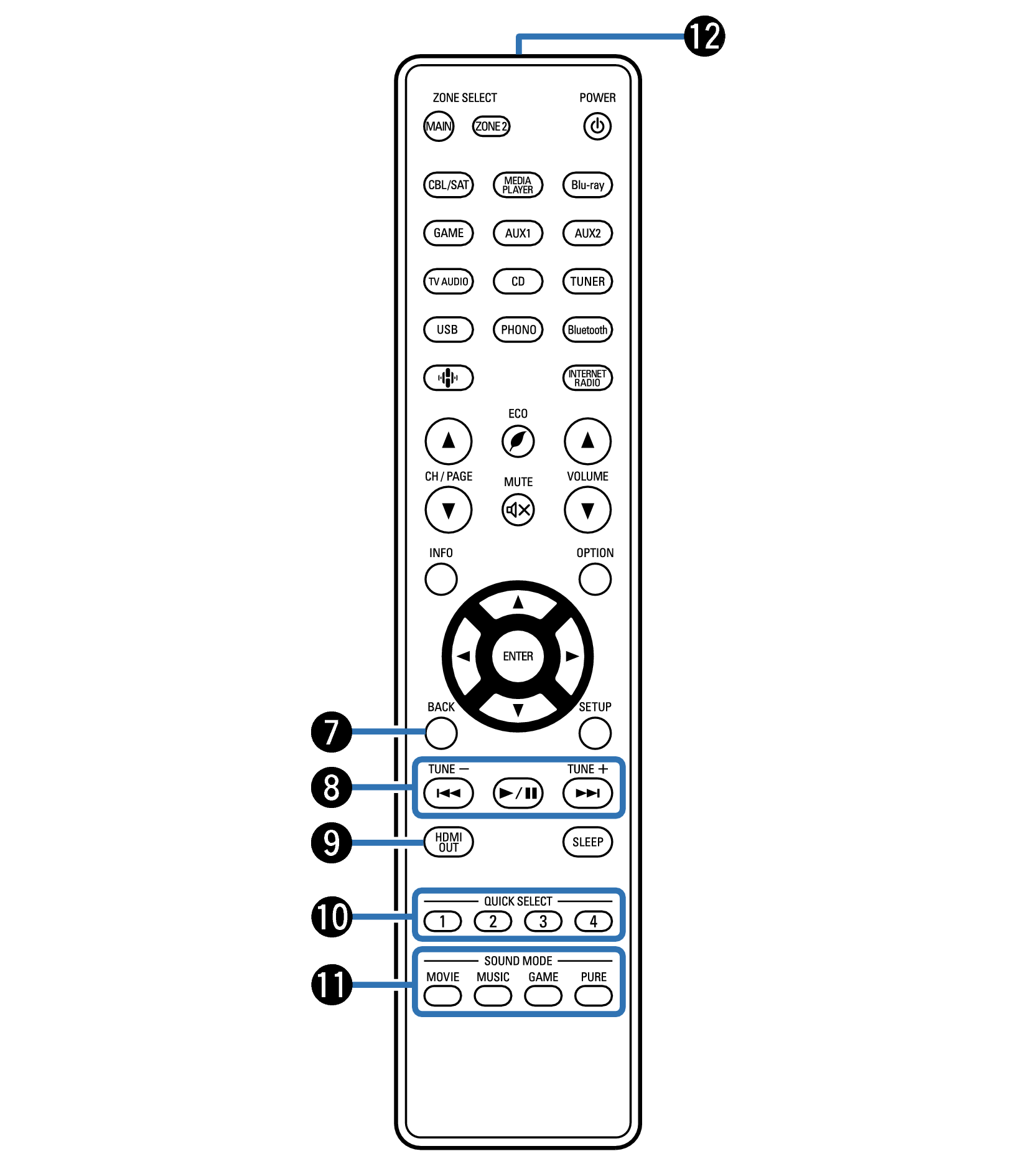

Name RC1253a

BACK button

This returns to the previous screen.

System buttons

These perform playback related operations.

HDMI OUT button

This sets the HDMI monitor output. link

QUICK SELECT buttons (1 – 4)

These call up settings registered to each button, such as input source, volume level and sound mode settings. link

SOUND MODE buttons

These select the sound mode. link

Remote control signal transmitter

This transmits signals from the remote control unit. link

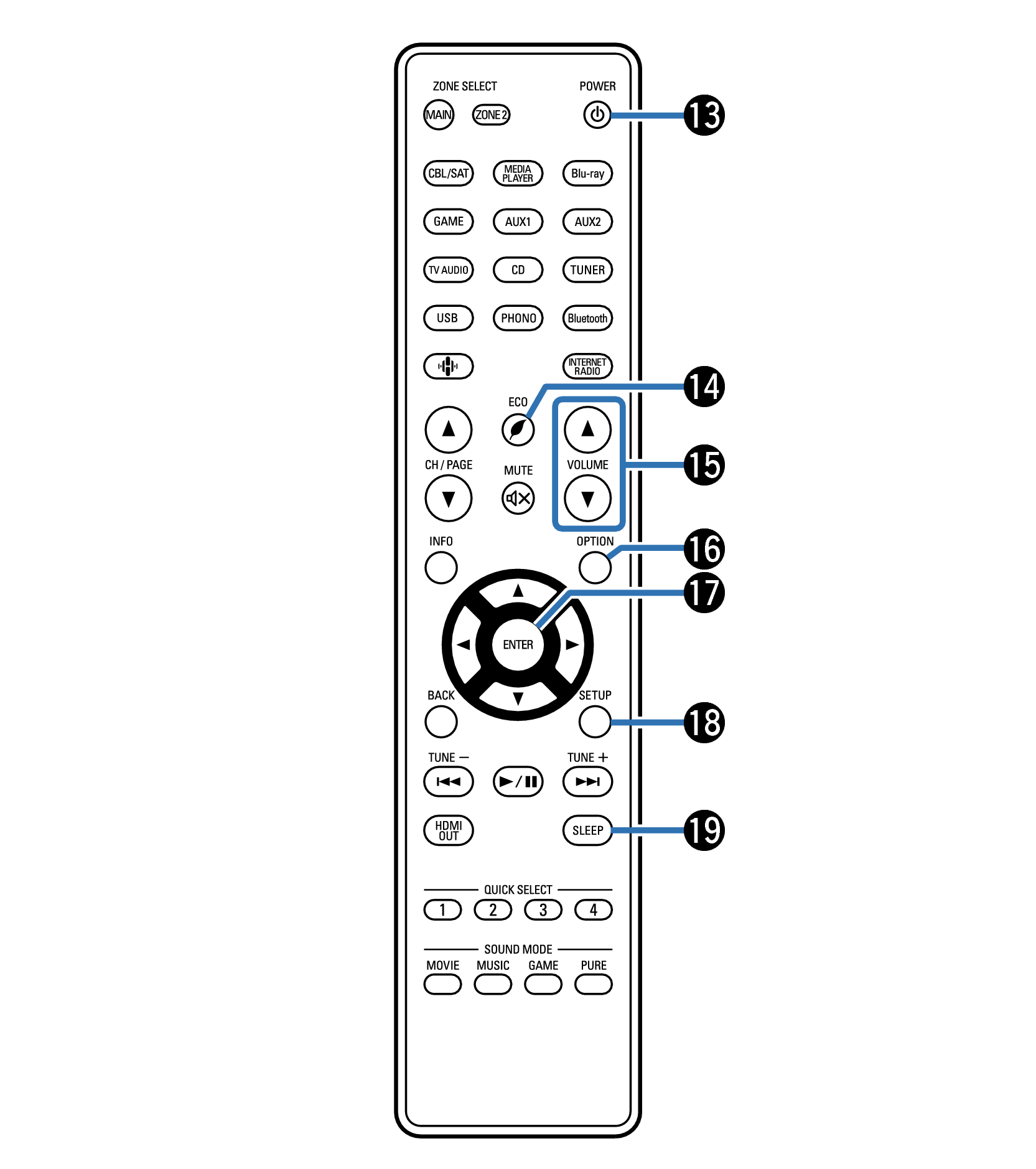

Name RC1253b

POWER button ( Power Button )

This turns the power on/off.

Turning the power onlink

Playing different sources in MAIN ZONE and ZONE2link

ECO Mode button ( Icon Eco )

This switches to ECO Mode. link

VOLUME buttons ( kurosankaku Sankaku-Reverse )

These adjusts the volume level.

Adjusting the volumelink

Adjusting the Volume in ZONE2link

OPTION button

This displays the option menu on the TV screen.

ENTER button

This determines the selection.

SETUP button

This displays the menu on the TV screen. link

SLEEP button

This sets the sleep timer. link
